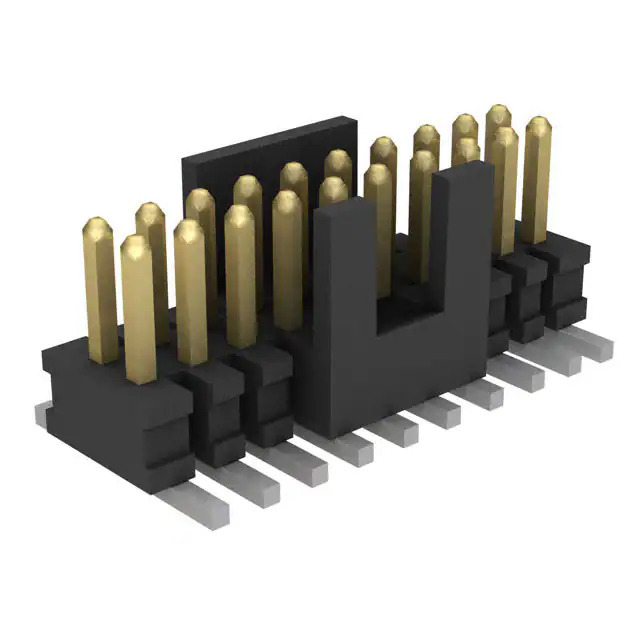

The FTSH-110-01-L-DV-K-P is a male pin header connector from Samtec Inc.

• Series: FTSH
• Connection Type: Board-to-Board or Cable
• Pitch: 0.050" (1.27mm)
• Number of Positions: 20
• Number of Rows: 2
• Contact Material: Phosphor Bronze
• Contact Finish (Mating): Gold
• Contact Finish (Post): Tin
• Current Rating: 3.4A per contact
• Mounting Type: Surface Mount
• Design: Shrouded with Keying Shroud
• Pick and Place: Yes
• Contact Length (Mating): 0.120" (3.05mm)
• Insulation Height: 0.099" (2.51mm)
• Insulation Material: Liquid Crystal Polymer (LCP)
• Flammability Rating: UL94 V-0
• Fastening Type: Push-Pull
• Termination: Solder
• Status: Active
• REACH: No Impact
