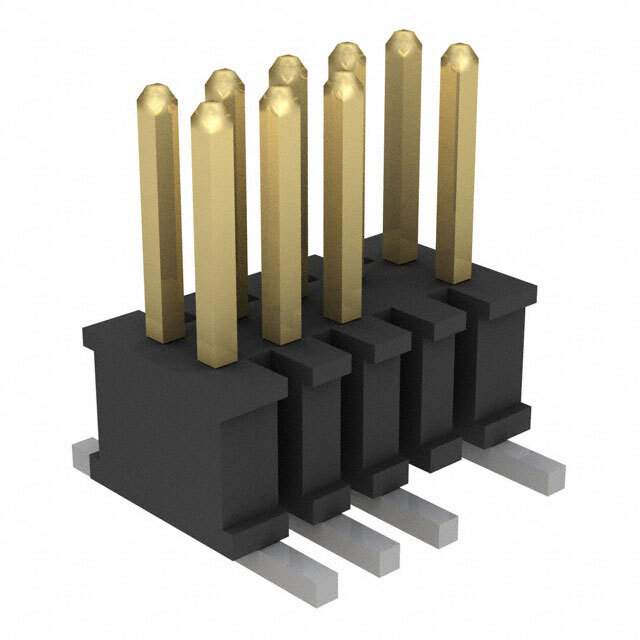

Same model may have multiple batches, images only for reference.

FTSH-105-01-F-DV-007-P-TR

Name: FTSH-105-01-F-DV-007-P-TR
Brand: Samtec Inc.
SKU: 1059982
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	FTSH-105-01-F-DV-007-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.27MM / Connector Header Surface Mount 10 position 0.050" (1.27mm)
Datasheet	FTSH-105-01-F-DV-007-P-TR Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	FTSH
Package	Tape & Reel
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	9
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.099" (2.51mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	3.00µin (0.076µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Base Product Number	FTSH-105
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	FTSH-105-01-F-DV-007-P-TR-ND,SAM13927CT,FTSH-105-01-F-DV-007-P-FR,SAM13927TR,SAM13927DKR
Standard Package	425
Win Source Part Number	1059982-FTSH-105-01-F-DV-007-P-TR
Ultra Librarian 3D Model	Ultra Librarian FTSH-105-01-F-DV-007-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. FTSH is a rectangular connector used in headers and male pins.

Positions: 10
Contact Type: male pin
Connector Type: header, cuttable
Positions Loaded: 9
Rows: two
Termination: solder
Fastening Type: push-pull
Package: tape and reel
Contact Material: phosphor bronze
Material Flammability Rating: UL94 V-0
Insulation Material: liquid crystal polymer (LCP)
Style: board to board or cable
Pitch of Mating: 0.050" (1.27mm)
Contact Finish-Mating: gold with a thickness of 3.00µin (0.076µm)
Contact Finish-Post: tin
Insulation Color: black
Shrouding: unshrouded
Row Spacing-Mating: 0.050" (1.27mm)
Insulation Height: 0.099" (2.51mm)
Contact Shape: square
Temperature Range for Operation: -55°C to 125°C
Contact Length-Mating: 0.120" (3.05mm)
MSL Level: 1 (Unlimited)
Current Rating (amps): 3.4A per contact
REACH Status: REACH Unaffected
HTSUS: 8536.69.4040
