Same model may have multiple batches, images only for reference.

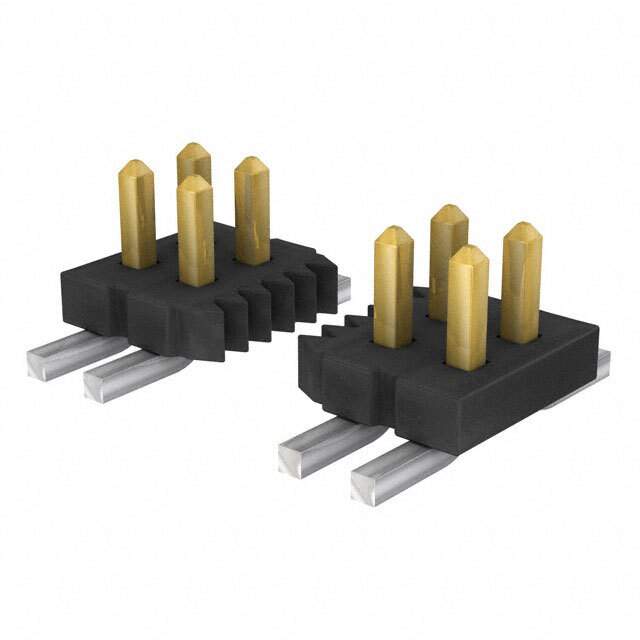

FTS-130-03-L-DV Real Image
Same model may have multiple batches, images only for reference.

FTS-130-03-L-DV

Part No FTS-130-03-L-DV
Manufacturer Samtec Inc.
Catalog Rectangular Connectors
Description CONN HEADER SMD 60POS 1.27MM / Connector Header Surface Mount 60 position 0.050" (1.27mm)
Datasheet
FTS-130-03-L-DV Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr Samtec Inc.
Series FTS
Package Bulk
Connector Type Header, Cuttable
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 60
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Board or Cable
Shrouding Unshrouded
Mounting SMD (SMT)
Termination Solder
Fastening Type Push-Pull
Contact Length - Mating 0.065" (1.65mm)
Insulation Height 0.034" (0.86mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating 10.0µin (0.25µm)
Contact Finish - Post Tin
Contact Material Phosphor Bronze
Insulation Material Liquid Crystal Polymer (LCP)
Temperature Range - Operating -55°C ~ 125°C
Material Flammability Rating UL94 V-0
Insulation Color Black
Current Rating (Amps) 3.4A per Contact
Base Product Number FTS-130
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names SAM1159-30
Standard Package 1
Win Source Part Number 994676-FTS-130-03-L-DV
Ultra Librarian 3D Model Ultra Librarian FTS-130-03-L-DV CAD Model

Description

The FTS-130-03-L-DV is a rectangular connector - header, male pin electronic component manufactured by Samtec Inc.

  • Manufacturer: Samtec Inc.
  • Product: FTS-130-03-L-DV
  • Win Source Part Number: 994676-FTS-130-03-L-DV
  • Series: FTS
  • Number of Positions: 60
  • Connector Type: Header, cuttable
  • Contact Type: Male Pin
  • Positions Loaded: All
  • Rows: 2
  • Termination: Solder
  • Fastening Type: Push-Pull
  • Package: Bulk
  • Contact Material: Phosphor Bronze
  • Voltage Rating: Unknown
  • Mated Stacking Heights: No Information
  • Ingress Protection: No Information
  • Material Flammability Rating: UL94 V-0
  • Mounting: SMD (SMT)
  • Pitch - Mating: 0.050 inches (1.27mm)
  • Contact Finish - Mating: Gold
  • Contact Finish Thickness - Mating: 10.0µin (0.25µm)
  • Contact Finish - Post: Tin
  • Insulation Color: Black
  • Shrouded: Unshrouded
  • Row Spacing - Mating: 0.050 inches (1.27mm)
  • Contact Length - Mating: 0.065 inches (1.65mm)
  • Insulation Height: 0.034 inches (0.86mm)
  • Temperature Range - Operating: -55°C ~ 125°C
  • MSL Level: 1 (Unlimited)
  • Current Rating (Amps): 3.4A per Contact
  • REACH Status: REACH unaffected
  • HTSUS: 8536.69.4040
