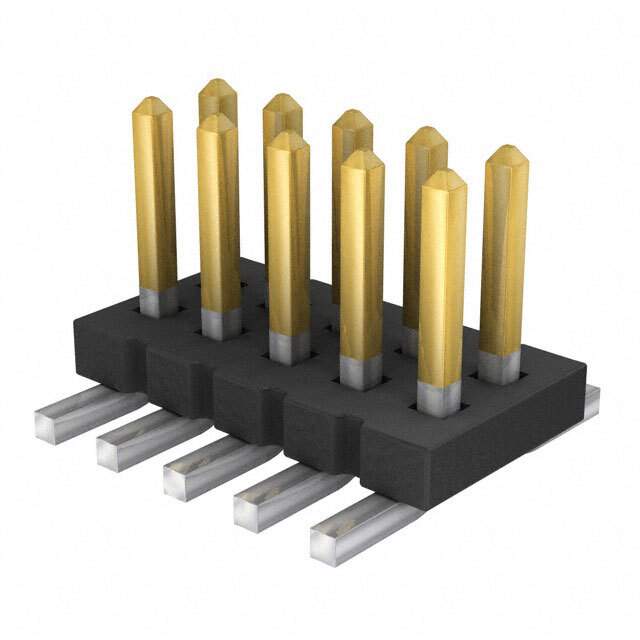

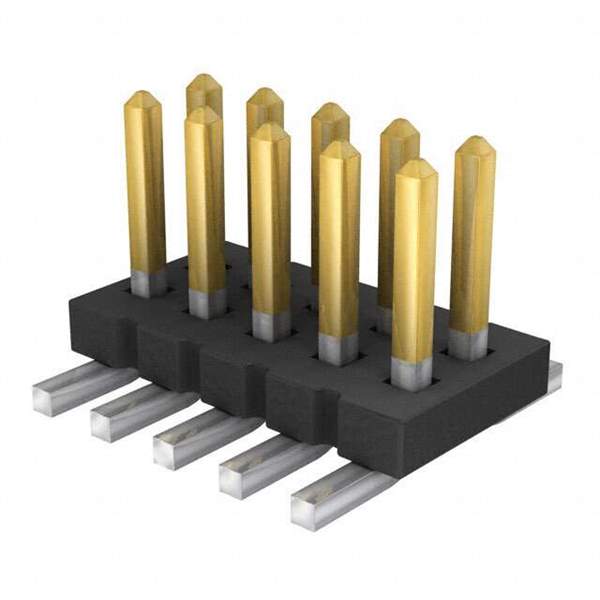

FTS-105-01-L-DV-P-TR

Name: FTS-105-01-L-DV-P-TR
Brand: Samtec Inc.
SKU: 809343
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	FTS-105-01-L-DV-P-TR
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 10POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Reel
Connector Type	Header, Cuttable
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	10
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Board or Cable
Shrouding	Unshrouded
Mounting Style	SMD
Termination	Solder
Fastening Type	Push-Pull
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.034" (0.86mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Pick and Place
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3.4A per Contact
Manufacturer Pack Quantity	600
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	809344-FTS-105-01-L-DV-P-TR
Ultra Librarian 3D Model	Ultra Librarian FTS-105-01-L-DV-P-TR CAD Model

Alternative Products

Description

The Samtec Inc. 809344-FTS-105-01-L-DV-P-TR header connector is a board to board or cable type connector with 10 positions loaded on 2 rows.

Pitch: 0.050 inches (1.27mm)
Contact Length: 0.120 inches (3.05mm)
Contact Type: Male Pin
Contact Material: Phosphor Bronze
Contact Finish (Mating): Gold
Contact Finish (Post): Tin
Voltage Rating: -
Current Rating: 3.4A per contact
Fastening Type: Push-pull
Termination: Solder
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Height: 0.034 inches (0.86mm)
Shrouding: Unshrouded
Temperature Range: -55°C to 125°C
Packaging: Reel
Manufacturer Pack Quantity: 600
