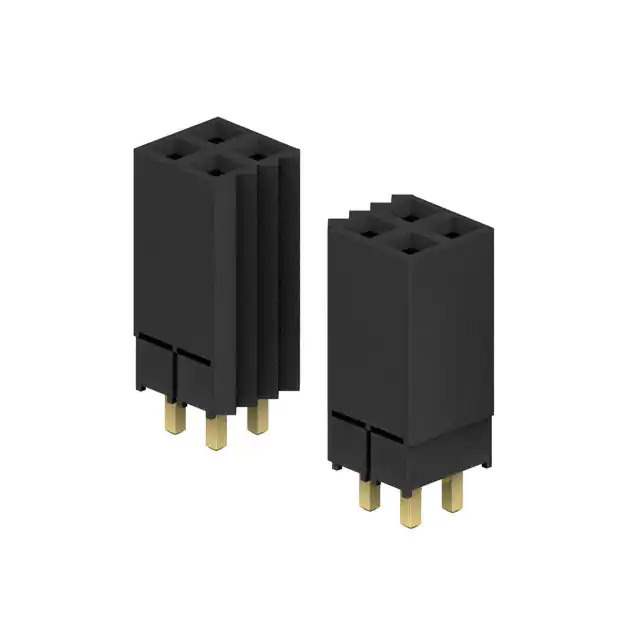

The ESQ-132-12-G-D is a rectangular connector header from Samtec Inc.

• Series: ESQ
• Positions: 64
• Connector Type: elevated socket connector with forked contacts
• Rows: Two
• Termination: Solder
• Fastening Type: Push-pull
• Package: Tube
• Contact Material: Phosphor Bronze
• Voltage Rating: 550VAC
• Insulation Material: Liquid Crystal Polymer (LCP)
• Flammability Rating: UL94 V-0
• Pitch for Mating: 0.100" (2.54mm)
• Contact Finish: Gold with a thickness of 20.0µin (0.51µm)
• Contact Finish for the Post: Gold with a thickness of 3.00µin (0.076µm)
• Mounting Type: Through-Hole
• Row Spacing: 0.100" (2.54mm)
• Insulation Height: 0.435" (11.05mm)
• Contact Shape: Square
• Operating Temperature: -55°C to 125°C
• ECCN: EAR99
• HTSUS Code: 8536.69.4040
• California Prop 65: warning information applies to this product
