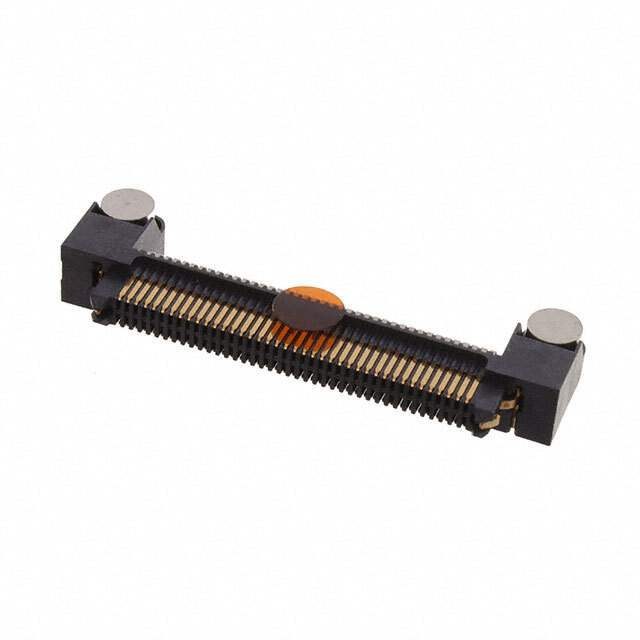

ERM8-040-01-L-D-RA-L-K-TR Samtec Inc.
Same model may have multiple batches, images only for reference.

ERM8-040-01-L-D-RA-L-K-TR

Part No ERM8-040-01-L-D-RA-L-K-TR
Manufacturer Samtec Inc.
Catalog Rectangular - Board to Board Connectors
Description CONN HDR 80POS R/A SMD GOLD
Datasheet
ERM8-040-01-L-D-RA-L-K-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1209179-ERM8-040-01-L-D-RA-L-K-TR
Manufacturer Samtec Inc.
Category Connectors, Interconnects- Rectangular Connectors -Arrays, Edge Type, Mezzanine (Board to Board)
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Connector Type Header, Center Strip Contacts
Number of Positions 80
Mounting Type Surface Mount, Right Angle
Number of Rows 2
Features Board Guide, Latches, Mounting Flange, Pick and Place
Contact Finish Thickness 10.0µin (0.25µm)
Ultra Librarian 3D Model Ultra Librarian ERM8-040-01-L-D-RA-L-K-TR CAD Model

Description

80 Position Connector Header, Center Strip Contacts Surface Mount, Right Angle Gold
