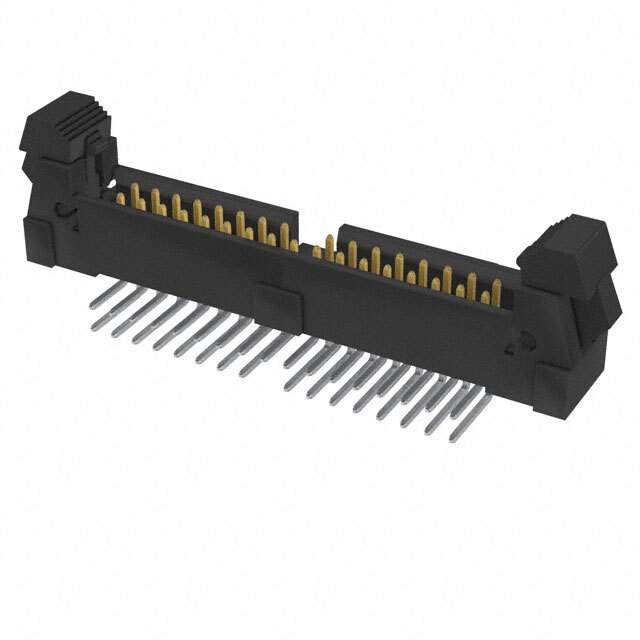

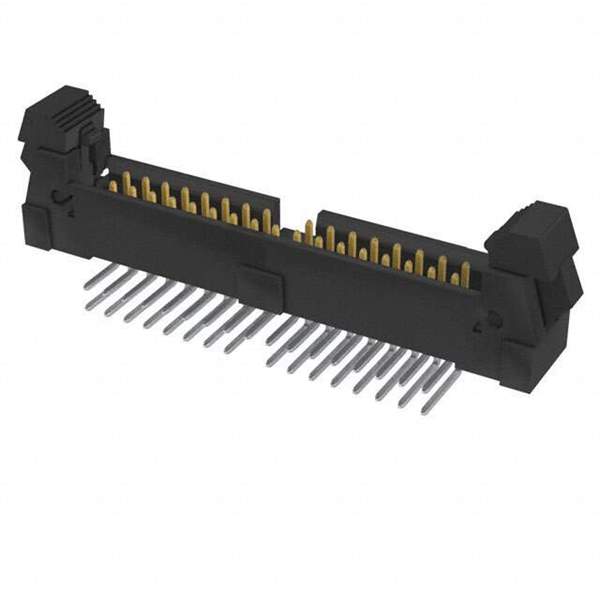

EHT-117-01-S-D-RA-17

Name: EHT-117-01-S-D-RA-17
Brand: Samtec Inc.
SKU: 1041999
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	EHT-117-01-S-D-RA-17
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER R/A 34POS 2MM / Connector Header Through Hole, Right Angle 34 position 0.079" (2.00mm)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr	Samtec Inc.
Series	EHT
Package	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.079" (2.00mm)
Number of Positions	34
Number of Rows	2
Row Spacing - Mating	0.079" (2.00mm)
Number of Positions Loaded	33
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Type	Through Hole, Right Angle
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Contact Length - Post	0.120" (3.05mm)
Insulation Height	0.300" (7.62mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	30.0µin (0.76µm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP)
Features	Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Insulation Color	Black
Current Rating (Amps)	3A
Base Product Number	EHT-117
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Standard Package	1
Win Source Part Number	1041999-EHT-117-01-S-D-RA-17
Ultra Librarian 3D Model	Ultra Librarian EHT-117-01-S-D-RA-17 CAD Model

Alternative Products

Description

The EHT series male pin header connector is a through-hole, right-angle connector designed for board-to-cable/wire applications.

Connector Type: Header
Gender: Male
Orientation: Right Angle
Number of Positions: 34
Number of Positions Loaded: 33
Design: Shrouded, 4-Wall
Pitch: 0.079 inches
Row Spacing: 0.079 inches
Contact Material: Phosphor Bronze
Contact Finish Mating: Gold
Post Finish: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Contact Length Mating: 0.120 inches
Contact Length Post: 0.120 inches
Insulation Height: 0.300 inches
Temperature Range: -55°C to 125°C
Packaging: Tube
Package Quantity: 1
