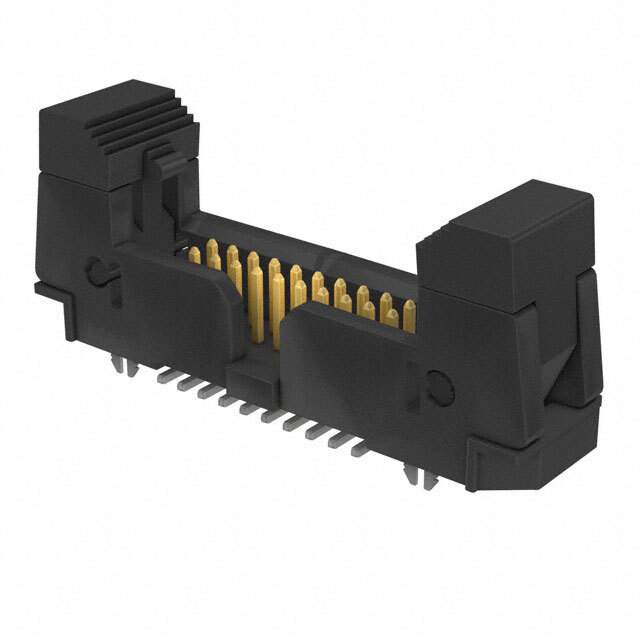

EHF-110-01-LM-D-SM-LC

Name: EHF-110-01-LM-D-SM-LC
Brand: Samtec Inc.
SKU: 807681
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	EHF-110-01-LM-D-SM-LC
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN HEADER SMD 20POS 1.27MM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Samtec Inc.
Packaging	Tube
Connector Type	Header
Contact Type	Male Pin
Pitch - Mating	0.050" (1.27mm)
Number of Positions	20
Number of Rows	2
Row Spacing - Mating	0.050" (1.27mm)
Number of Positions Loaded	All
Style	Board to Cable/Wire
Shrouding	Shrouded - 4 Wall
Mounting Style	SMD
Termination	Solder
Fastening Type	Latch Lock/Eject Hooks
Contact Length - Mating	0.120" (3.05mm)
Insulation Height	0.325" (8.25mm)
Contact Shape	Square
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0μin (0.25μm)
Contact Finish - Post	Tin
Contact Material	Phosphor Bronze
Insulation Material	Liquid Crystal Polymer (LCP), Glass Filled
Features	Board Lock, Keying Slot
Temperature Range - Operating	-55°C ~ 125°C
Insulation Color	Black
Current Rating (Amps)	1.75A
Manufacturer Pack Quantity	1
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	807681-EHF-110-01-LM-D-SM-LC
Ultra Librarian 3D Model	Ultra Librarian EHF-110-01-LM-D-SM-LC CAD Model

Alternative Products

Description

The Tiger Eye™ SFM header connector is a high-quality rectangular connector designed for use in electronic devices.

Connector Type: Receptacle
Positions: 20
Pitch: 0.050" (1.27mm)
Shrouding: 4 walls
Color: Black
Contact Finish: Gold (10.0μin (0.25μm) thickness)
Mounting Style: Surface mount
Termination: Solder
Features: Board lock, keying slot
Packaging: Tube
