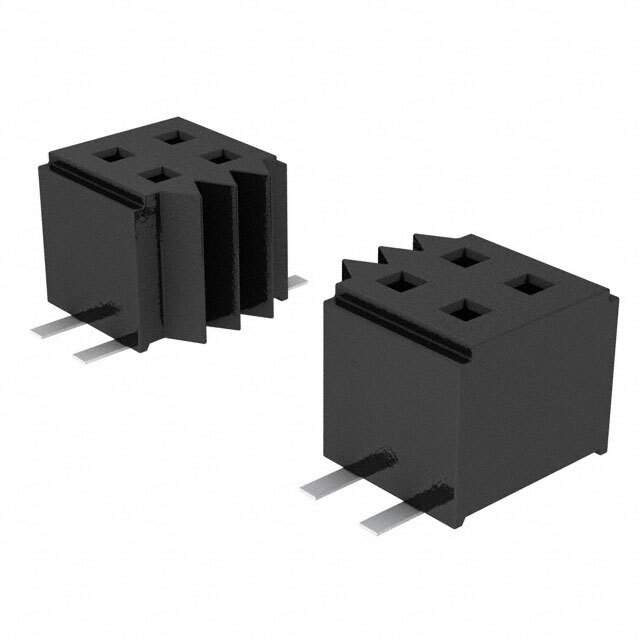

Same model may have multiple batches, images only for reference.

CLM-129-02-L-D

Name: CLM-129-02-L-D
Brand: Samtec Inc.
SKU: 1018464
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CLM-129-02-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 58POS 0.039 GOLD SMD / 58 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
Datasheet	CLM-129-02-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CLM
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	58
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.089" (2.26mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	CLM-129
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1129-29
Standard Package	1
Win Source Part Number	1018464-CLM-129-02-L-D
Ultra Librarian 3D Model	Ultra Librarian CLM-129-02-L-D CAD Model

Alternative Products

Description

The CLM series connector is a rectangular board to board connector with a receptacle connector type manufactured by Samtec.

Positions: 58, with all positions loaded
Rows: two
Contact Material: phosphor bronze
Contact Shape: square
Pitch Mating: 0.039 inches
Contact Finish Mating: gold with a thickness of 10.0µin
Mounting: designed for SMT mounting
Temperature Range: -55°C to 125°C
Ideal for: use in applications such as interconnects for electronic equipment, medical devices, and communication systems.
