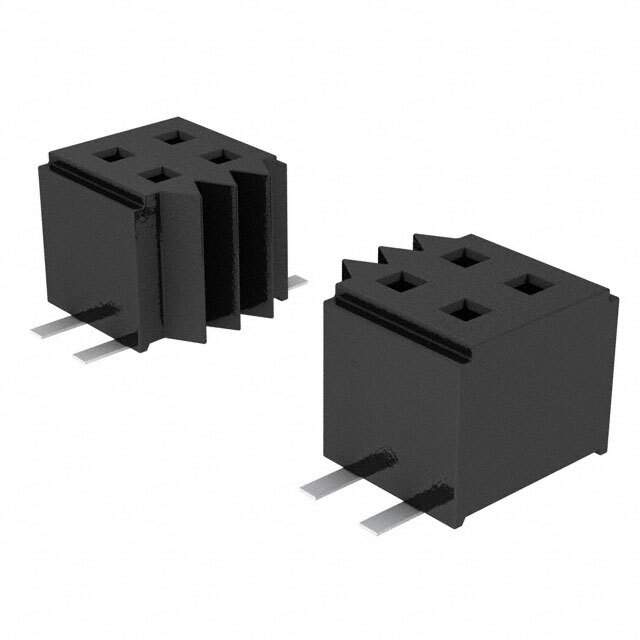

Same model may have multiple batches, images only for reference.

CLM-114-02-L-D

Name: CLM-114-02-L-D
Brand: Samtec Inc.
SKU: 1069790
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CLM-114-02-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 28POS 0.039 GOLD SMD / 28 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
Datasheet	CLM-114-02-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CLM
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	28
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.089" (2.26mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	CLM-114
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1129-14
Standard Package	1
Win Source Part Number	1069790-CLM-114-02-L-D
Ultra Librarian 3D Model	Ultra Librarian CLM-114-02-L-D CAD Model

Alternative Products

Description

The CLM-114-02-L-D is a rectangular connector manufactured by Samtec Inc.

Series: CLM
Positions: 28
Connector Type: receptacle connector with female sockets
Loading: all positions
Rows: 2
Termination: solder
Fastening Type: push-pull
Mounting: SMD (SMT)
Contact Material: phosphor bronze
Voltage Rating: -
Current Rating: 2.8A per contact
Pitch: 0.039" (1.00mm)
Contact Finish: gold with a thickness of 10.0µin (0.25µm)
Insulation Material: liquid crystal polymer (LCP)
Insulation Height: 0.089" (2.26mm)
Temperature Range: -55°C to 125°C
REACH: not affected
Supply and Demand Status: balance
Market Choice: popular
