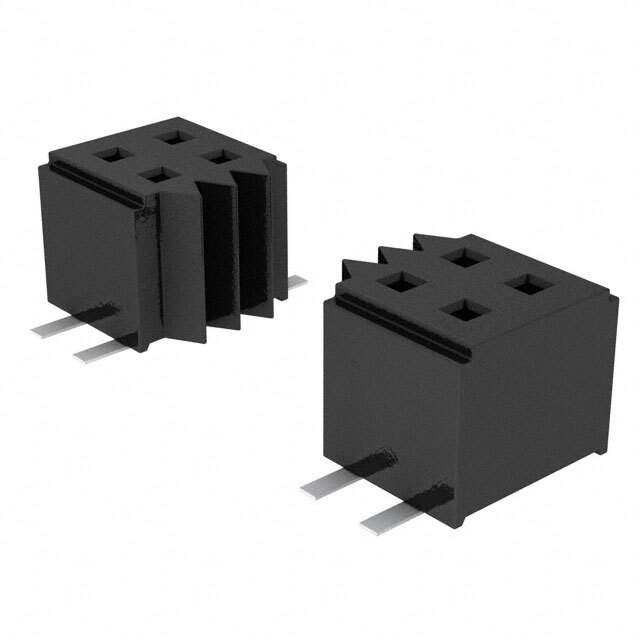

Same model may have multiple batches, images only for reference.

CLM-118-02-L-D

Name: CLM-118-02-L-D
Brand: Samtec Inc.
SKU: 998888
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CLM-118-02-L-D
Manufacturer	Samtec Inc.
Catalog	Rectangular Connectors
Description	CONN RCPT 36POS 0.039 GOLD SMD / 36 Position Receptacle Connector 0.039" (1.00mm) Surface Mount Gold
Datasheet	CLM-118-02-L-D Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>Rectangular Connectors - Headers, Receptacles, Female Sockets
Mfr	Samtec Inc.
Series	CLM
Package	Bulk
Connector Type	Receptacle
Contact Type	Female Socket
Style	Board to Board
Number of Positions	36
Number of Positions Loaded	All
Pitch - Mating	0.039" (1.00mm)
Number of Rows	2
Row Spacing - Mating	0.039" (1.00mm)
Mounting	SMD (SMT)
Termination	Solder
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10.0µin (0.25µm)
Insulation Color	Black
Insulation Height	0.089" (2.26mm)
Temperature Range - Operating	-55°C ~ 125°C
Material Flammability Rating	UL94 V-0
Contact Finish - Post	Tin
Current Rating (Amps)	2.8A per Contact
Insulation Material	Liquid Crystal Polymer (LCP)
Contact Shape	Square
Contact Material	Phosphor Bronze
Base Product Number	CLM-118
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.69.4040
Other Names	SAM1129-18
Standard Package	1
Win Source Part Number	998888-CLM-118-02-L-D
Ultra Librarian 3D Model	Ultra Librarian CLM-118-02-L-D CAD Model

Alternative Products

Description

The CLM-118-02-L-D is a rectangular connector from Samtec Inc.

Number of Positions: 36
Connector Type: Receptacle
Contact Type: Female Socket
Loaded Positions: All
Pitch-Mating: 0.039 inches (1.00mm)
Contact Finish-Mating: Gold (10.0μin (0.25μm))
Contact Finish-Post: Tin
Insulation Material: Liquid Crystal Polymer (LCP)
Insulation Color: Black
ECCN: EAR99
HTSUS Code: 8536.69.4040
Current Rating: 4.5A per contact
