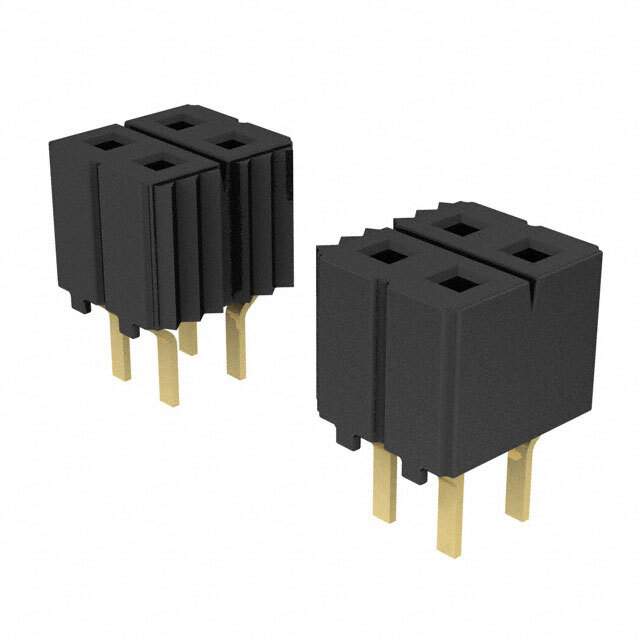

The CES-111-02-G-D is a 22-position receptacle connector from Samtec Inc. that is designed for board-to-board applications.

• Pitch-Mating: 0.100 inches (2.54mm)
• Contact Shape: square
• Contact Type: female socket
• Insulation Material: polybutylene terephthalate (PBT)
• Insulation Color: black
• Operating Temperature: -55°C to 125°C
• Fastening Type: push-pull
• Current Rating: -
• Contact Finish (Mating): gold with a thickness of 20.0μin (0.51μm)
• Contact Finish (Post): gold with a thickness of 3.00μin (0.076μm)
• Positions Loaded: all
• Rows: two
• Mounting: through-hole
• Package: tube
• Row Spacing: 0.100 inches (2.54mm)
• Contact Length: 0.223 inches (5.66mm)
