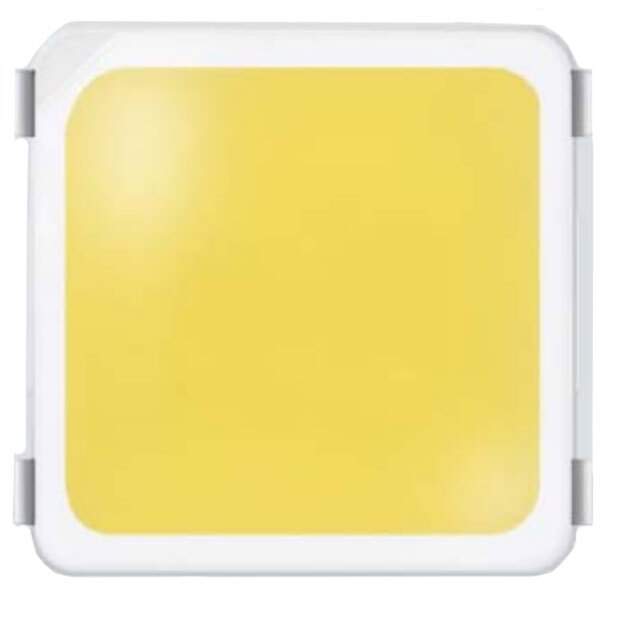

The Samsung Semiconductor LM302C LED Lighting is a white, warm LED with a height of 0.033 inches.

• Standard Package: 4,000
• Mounting Type: SMD (SMT)
• Maximum Current: 150mA
• Viewing Angle: 115 degrees
• Voltage Forward (Vf): 5.9V
• Current Test: 65mA
• CCT (K): 3000K 3-Step MacAdam Ellipse
• Lumens per Watt: 156 lm/W @ current test
• CRI (Color Rendering Index): 80
• Thermal Resistance: 8 degrees Celsius per watt
• Package or Case: 1212 (3030 Metric)
• Supplier Device Package: 3030
• Dimension: 0.118 inches L x 0.118 inches W (3.00mm x 3.00mm)
• Use: Suitable for optoelectronics and LED lighting-white.
