Same model may have multiple batches, images only for reference.

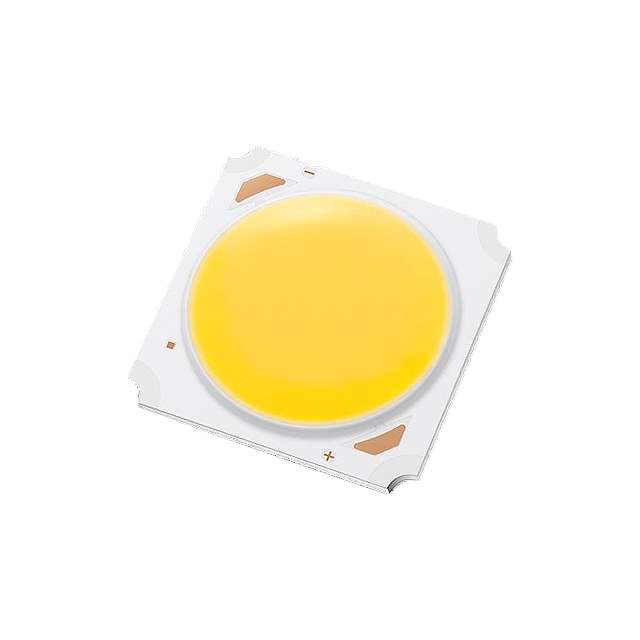

SPHWW1HDNE28YHW23M Real Image
Same model may have multiple batches, images only for reference.

SPHWW1HDNE28YHW23M

Part No SPHWW1HDNE28YHW23M
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT 2700K 2STEP 95CRI / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Warm Square
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LC040B
Product Status Obsolete
Type Chip On Board (COB)
Color White, Warm
CCT (K) 2700K 2-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 3771lm (Typ)
Current - Test 1.08A
Temperature - Test 25°C
Voltage - Forward (Vf) (Typ) 35.5V
Lumens/Watt @ Current - Test 98 lm/W
Current - Max 1.9A
CRI (Color Rendering Index) 95
Viewing Angle 115°
Dimension 21.50mm L x 21.50mm W
Height 1.50mm
Light Emitting Surface (LES) 17.00mm Dia
Lens Type Flat
Base Product Number SPHWW1
Standard Package 320
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240592-SPHWW1HDNE28YHW23M
Ultra Librarian 3D Model Ultra Librarian SPHWW1HDNE28YHW23M CAD Model

Description

The Samsung LC040B series Chip On Board (COB) LED is a high-performance lighting solution for a variety of applications.

  • Voltage-Forward (Vf): 35.5V
  • Maximum Current: 1.9A
  • Light Output: up to 3771lm of warm white light
  • Color Temperature: 2700K
  • CRI: 95
  • Configuration: Square
  • Viewing Angle: 115 degrees
  • Light Emitting Surface (LES): 17.00mm diameter
  • Package: Tray
  • Package Size: 320
  • Product Status: Obsolete and is not recommended for new designs
