Same model may have multiple batches, images only for reference.

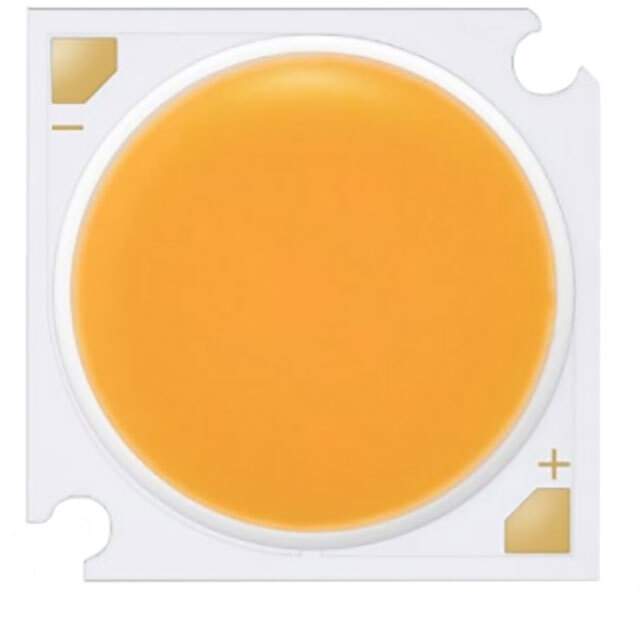

SPHWHAHDNL231ZT3DB Real Image
Same model may have multiple batches, images only for reference.

SPHWHAHDNL231ZT3DB

Part No SPHWHAHDNL231ZT3DB
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT LC060D 4000K 70CRI / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Square
Datasheet
SPHWHAHDNL231ZT3DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series COB D Gen2
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 9521lm (Typ)
Current - Test 1.08A
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 51.1V
Lumens/Watt @ Current - Test 173 lm/W
Current - Max 2.16A
CRI (Color Rendering Index) 70
Viewing Angle 115°
Dimension 28.00mm L x 28.00mm W
Height 1.50mm
Light Emitting Surface (LES) 22.00mm Dia
Lens Type Flat
Base Product Number SPHWHAHDNL231
Other Names 1510-SPHWHAHDNL231ZT3DB
Standard Package 160
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241563-SPHWHAHDNL231ZT3DB
Ultra Librarian 3D Model Ultra Librarian SPHWHAHDNL231ZT3DB CAD Model

Description

The Samsung Semiconductor, Inc. electronic component with the Win Source Part Number 1241563-SPHWHAHDNL231ZT3DB is a chip on board (COB) type product with a square configuration.

  • Series: COB D Gen2
  • Suitable for: LED lighting - COBs, engines, modules, strips
  • Color: White, neutral
  • CCT: 4000K 3-Step MacAdam Ellipse
  • Viewing Angle: 115 degrees
  • Voltage - Forward (Vf) (Typ): 51.1V
