Same model may have multiple batches, images only for reference.

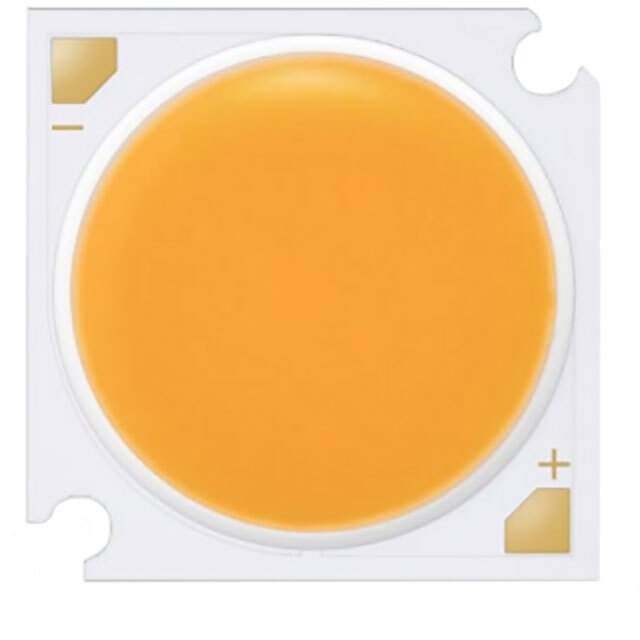

SPHWHAHDNF25YZT3DB Real Image
Same model may have multiple batches, images only for reference.

SPHWHAHDNF25YZT3DB

Part No SPHWHAHDNF25YZT3DB
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT LC019D 4000K 80CRI / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Neutral Square
Datasheet
SPHWHAHDNF25YZT3DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series COB D Gen2
Type Chip On Board (COB)
Color White, Neutral
CCT (K) 4000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 2996lm (Typ)
Current - Test 540mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34V
Lumens/Watt @ Current - Test 163 lm/W
Current - Max 1.08A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 19.00mm L x 19.00mm W
Height 1.50mm
Light Emitting Surface (LES) 14.50mm Dia
Lens Type Flat
Base Product Number SPHWHAHDNF25
Other Names 1510-SPHWHAHDNF25YZT3DB
Standard Package 250
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241557-SPHWHAHDNF25YZT3DB
Ultra Librarian 3D Model Ultra Librarian SPHWHAHDNF25YZT3DB CAD Model

Description

The Samsung COB D Gen2 is a chip on board (COB) type LED module that is square in configuration and has a viewing angle of 115 degrees.

  • Colors: White and neutral
  • Voltage Forward: 34V
  • Current Max: 1.08A
  • Current Test: 540mA
  • Height: 1.50mm
  • Lens Type: Flat
  • CCT (K): 4000K with 3-step MacAdam ellipse
  • CRI: 80
  • Light Emitting Surface (LES): 14.50mm in diameter
  • Dimension: 19.00mm L x 19.00mm W
  • Luminous Flux @ Current/Temperature: 2996lm (Typ)
  • Standard Package: 250
