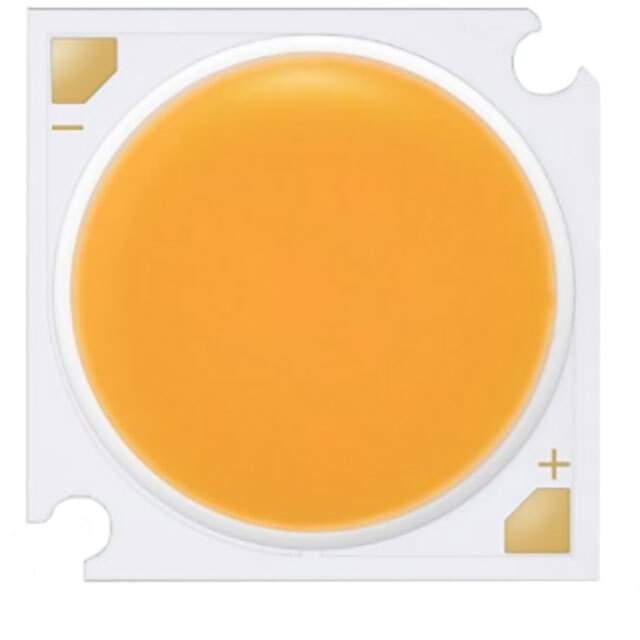

SPHWHAHDNC25YZR3DB Real Image
Same model may have multiple batches, images only for reference.

SPHWHAHDNC25YZR3DB

Part No SPHWHAHDNC25YZR3DB
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED COB WHT LC009D 5000K 80CRI / LED Lighting COBs Engines Modules Chip On Board (COB) series White, Cool Square
Datasheet
SPHWHAHDNC25YZR3DB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series COB D Gen2
Type Chip On Board (COB)
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Configuration Square
Luminous Flux @ Current/Temperature 1513lm (Typ)
Current - Test 270mA
Temperature - Test 85°C
Voltage - Forward (Vf) (Typ) 34V
Lumens/Watt @ Current - Test 165 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Dimension 13.50mm L x 13.50mm W
Height 1.50mm
Light Emitting Surface (LES) 9.80mm Dia
Lens Type Flat
Base Product Number SPHWHAHDNC25
Other Names 1510-SPHWHAHDNC25YZR3DB
Standard Package 500
MSL Level 2A (4 Weeks)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1241588-SPHWHAHDNC25YZR3DB
Ultra Librarian 3D Model Ultra Librarian SPHWHAHDNC25YZR3DB CAD Model

Description

The Samsung Semiconductor COB D Gen2 1241588-SPHWHAHDNC25YZR3DB is a chip on board (COB) type LED lighting module that emits cool white light.

  • Standard Package: 500
  • Maximum Current: 540mA
  • Configuration: Square
  • Viewing Angle: 115 degrees
  • Forward Voltage: 34V
  • Height: 1.50mm
  • Lens Type: Flat
  • CCT: 5000K 3-Step MacAdam Ellipse
  • CRI: 80
  • Temperature: 85 degrees Celsius
  • Light Emitting Surface (LES): 9.80mm in diameter
  • Dimension: 13.50mm L x 13.50mm W
  • MSL level: 2A (4 weeks)
  • HTSUS: 8541.41.0000
  • Manufacturer: Samsung Semiconductor, Inc.
  • Other name: 1510-SPHWHAHDNC25YZR3DB
  • Luminous Flux @ current/temperature: 1513lm (Typ)
