Same model may have multiple batches, images only for reference.

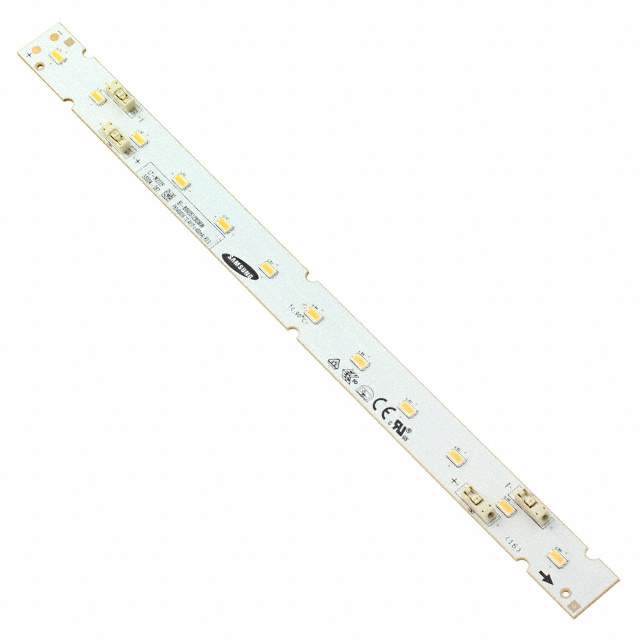

SI-B9W051280WW Real Image
Same model may have multiple batches, images only for reference.

SI-B9W051280WW

Part No SI-B9W051280WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED 2700K 90CRI LM561B / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SI-B9W051280WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-M272F
Package Tray
Product Status Obsolete
Type LED Module
Color White, Warm
CCT (K) 2700K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 510lm (Typ)
Current - Test 450mA
Temperature - Test 55°C
Voltage - Forward (Vf) (Typ) 12V
Lumens/Watt @ Current - Test 94 lm/W
Current - Max 450mA
CRI (Color Rendering Index) 90
Viewing Angle 115°
Dimension 275.00mm L x 18.00mm W
Height 5.80mm
Lens Type Flat
Other Names 1510-1195
Standard Package 400
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1240453-SI-B9W051280WW
Ultra Librarian 3D Model Ultra Librarian SI-B9W051280WW CAD Model

Description

The LT-M272F LED module is a linear light strip type that offers white and warm color options.

  • Product Name: LT-M272F LED module
  • Type: Linear light strip
  • Color Options: White and Warm
  • Viewing Angle: 115 degrees
  • Voltage Forward: 12V
  • Current Max: 450mA
  • Test Current: 450mA
  • CCT: 2700K 3-Step MacAdam Ellipse
  • CRI: 90
  • Height: 5.80mm
  • Dimension: 275.00mm L x 18.00mm W
  • Package: Tray
  • Standard Package: 400
  • Manufacturer: Samsung Semiconductor, Inc.
  • Status: Obsolete
