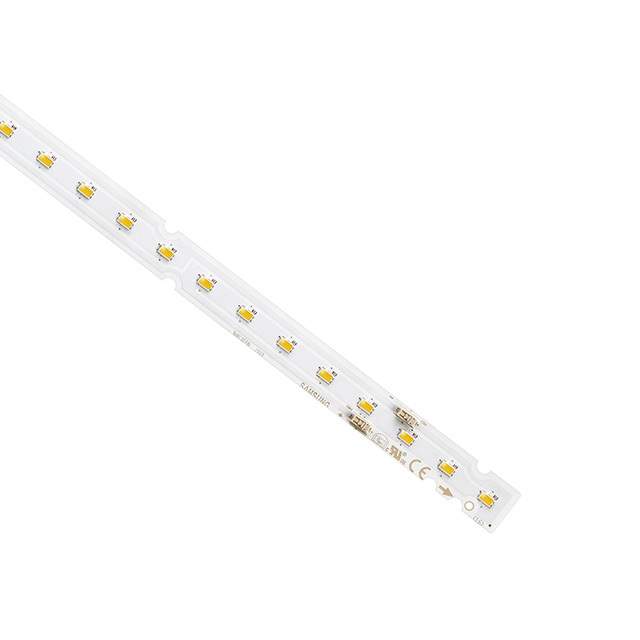

SI-B8U152560WW

Part No SI-B8U152560WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD LTM562BG2 WARM WHT STRIP / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SI-B8U152560WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-M562B_G2
Package Tray
Product Status Obsolete
Type LED Module
Color White, Warm
CCT (K) 3500K 4-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 2140lm (Typ)
Current - Test 600mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 24.8V
Lumens/Watt @ Current - Test 144 lm/W
Current - Max 720mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 560.00mm L x 18.00mm W
Height 4.40mm
Lens Type Flat
Other Names SI-B8U152560WW,1510-1560
Standard Package 280
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240430-SI-B8U152560WW
Ultra Librarian 3D Model Ultra Librarian SI-B8U152560WW CAD Model

Description

The LT-M562B_G2 series LED module in white, warm from Samsung Semiconductor, Inc. has a Win Source Part Number of 1240430-SI-B8U152560WW.

  • Current Rating: 720mA
  • Viewing Angle: 115 degrees
  • Forward Voltage: 24.8V
  • CCT: 3500K 4-Step MacAdam Ellipse
  • CRI: 80
  • Thermal Resistance: 16 degrees Celsius per watt
  • Product Status: obsolete
  • MSL Level: Not Applicable
