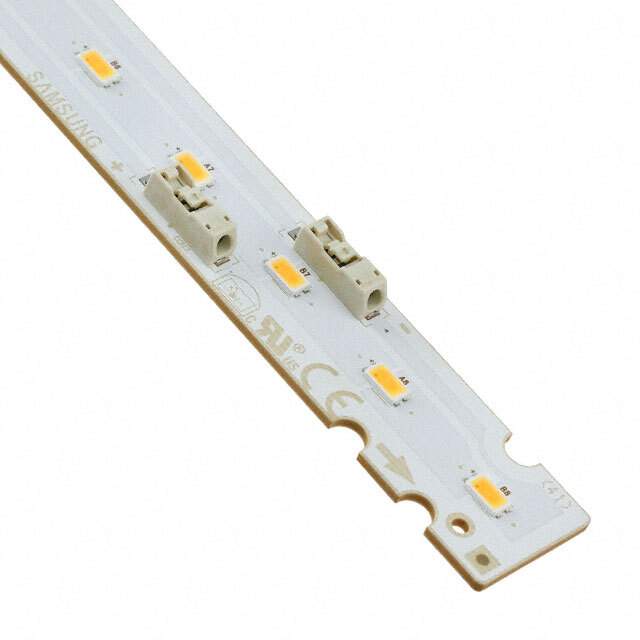

SI-B8U072280WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8U072280WW

Part No SI-B8U072280WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD LTM282BG2 WARM WHT STRIP / LED Lighting COBs Engines Modules LED Module series White, Warm Linear Light Strip
Datasheet
SI-B8U072280WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-M282B_G2
Package Tray
Product Status Obsolete
Type LED Module
Color White, Warm
CCT (K) 3500K 4-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1070lm (Typ)
Current - Test 300mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 24.8V
Lumens/Watt @ Current - Test 144 lm/W
Current - Max 360mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 275.00mm L x 18.00mm W
Height 4.40mm
Lens Type Flat
Other Names 1510-1558,SI-B8U072280WW
Standard Package 400
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240443-SI-B8U072280WW
Ultra Librarian 3D Model Ultra Librarian SI-B8U072280WW CAD Model

Description

The Samsung LT-M282B_G2 LED Module is a linear light strip with a flat lens type and a white or warm color.

  • Viewing Angle: 115 degrees
  • Voltage-Forward: 24.8V
  • Current-Max: 360mA
  • Current-Test: 300mA
  • Height: 4.40mm
  • Dimension: 275.00mm L x 18.00mm W
  • CCT: 3500K 4-Step MacAdam Ellipse
  • CRI: 80
  • Luminous Flux @ Current/Temperature: 1070lm (Typ)
  • HTSUS: 8541.41.0000
  • Manufacturer: Samsung Semiconductor, Inc.
  • Product Status: obsolete
