Same model may have multiple batches, images only for reference.

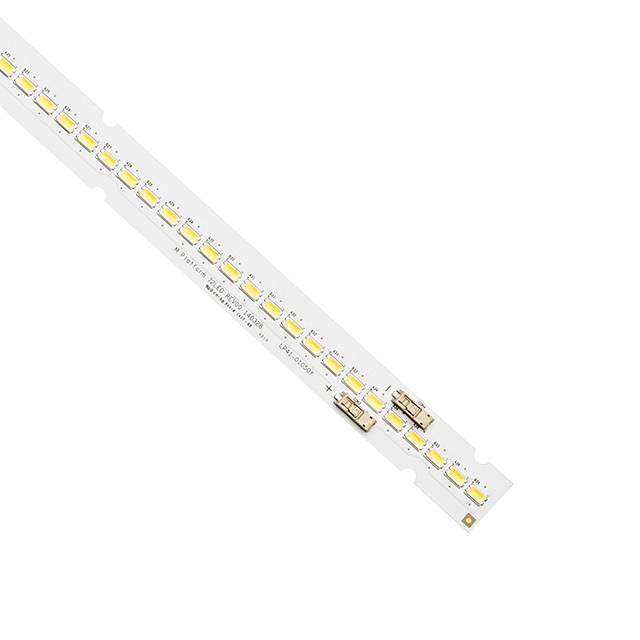

SI-B8T342560WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8T342560WW

Part No SI-B8T342560WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MODULE 4000K F562A_G2 / LED Lighting COBs Engines Modules LED Module series White, Neutral Linear Light Strip
Datasheet
SI-B8T342560WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-F562A_G2
Package Tray
Product Status Obsolete
Type LED Module
Color White, Neutral
CCT (K) 4000K 4-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 4820lm (Typ)
Current - Test 1.35A
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 24.8V
Lumens/Watt @ Current - Test 144 lm/W
Current - Max 1.62A
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 560.00mm L x 18.00mm W
Height 3.80mm
Lens Type Flat
Base Product Number SI-B8
Other Names 1510-1324
Standard Package 280
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240471-SI-B8T342560WW
Ultra Librarian 3D Model Ultra Librarian SI-B8T342560WW CAD Model

Description

The LT-F562A_G2 LED module from Samsung Semiconductor, Inc. is a linear light strip with a flat lens type, featuring a viewing angle of 115 degrees and a CCT of 4000K.

  • Product Name: LT-F562A_G2 LED module
  • Manufacturer: Samsung Semiconductor, Inc.
  • Configuration: Linear light strip
  • Lens Type: Flat
  • Viewing Angle: 115 degrees
  • CCT: 4000K
  • Voltage-Forward: 24.8V
  • Current Max: 1.62A
  • Package: Tray
  • Standard Package: 280 pieces
  • Height: 3.80mm
  • Length: 560.00mm
  • Width: 18.00mm
  • CRI: 80
  • Luminous Flux @ Current/Temperature: 4820lm @ typical current and temperature
