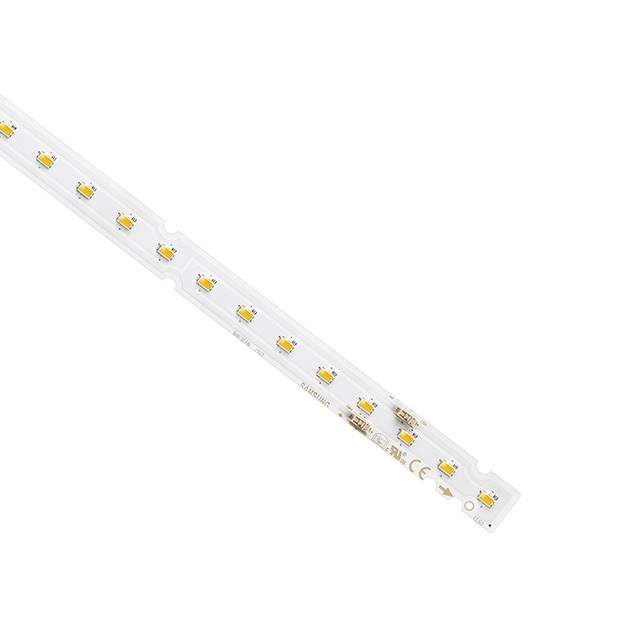

SI-B8R152560WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8R152560WW

Part No SI-B8R152560WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD LTM562BG2 COOL WHT STRIP / LED Lighting COBs Engines Modules LED Module series White, Cool Linear Light Strip
Datasheet
SI-B8R152560WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-M562B_G2
Package Tray
Product Status Obsolete
Type LED Module
Color White, Cool
CCT (K) 5000K 4-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 2200lm (Typ)
Current - Test 600mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 24.8V
Lumens/Watt @ Current - Test 148 lm/W
Current - Max 720mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 560.00mm L x 18.00mm W
Height 4.40mm
Lens Type Flat
Other Names 1510-1330
Standard Package 280
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240433-SI-B8R152560WW
Ultra Librarian 3D Model Ultra Librarian SI-B8R152560WW CAD Model

Description

The Samsung Semiconductor, Inc. SI-B8R152560WW is an LED lighting module that can be used for various applications.

  • Series: LT-M562B_G2 series
  • Package: tray
  • Current-Max: 720mA
  • Viewing Angle: 115 degrees
  • Voltage-Forward: 24.8V
  • CCT: 5000K 4-Step MacAdam Ellipse
  • Luminous Flux: 2200lm (Typ)
  • CRI: 80
  • HTSUS: 41.0000
  • Dimension: 560.00mm L x 18.00mm W
