Same model may have multiple batches, images only for reference.

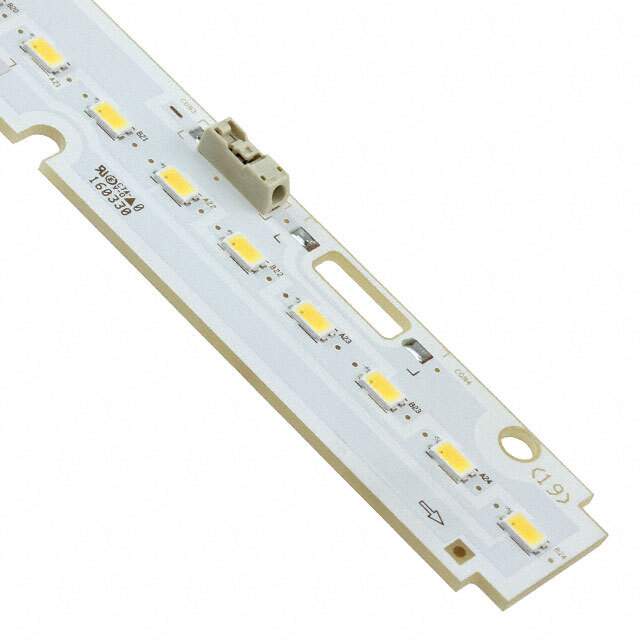

SI-B8R14156HWW Real Image
Same model may have multiple batches, images only for reference.

SI-B8R14156HWW

Part No SI-B8R14156HWW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED SLIM 5000K 2290LM FRONT WIRE / LED Lighting COBs Engines Modules LED Module series White, Cool Linear Light Strip
Datasheet
SI-B8R14156HWW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-S562H
Package Tray
Product Status Not For New Designs
Type LED Module
Color White, Cool
CCT (K) 5000K 3-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 2290lm (Typ)
Current - Test 300mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 46.9V
Lumens/Watt @ Current - Test 163 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 559.70mm L x 23.80mm W
Height 5.80mm
Lens Type Flat
Base Product Number SI-B8
Other Names SI-B8R14156HWW,1510-1367
Standard Package 224
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240391-SI-B8R14156HWW
Ultra Librarian 3D Model Ultra Librarian SI-B8R14156HWW CAD Model

Description

The LT-S562H LED module from Samsung Semiconductor, Inc. is a linear light strip that emits white, cool light.

  • Connector: Yes
  • Package Quantity: 224 units/tray
  • Maximum Current: 540mA
  • Typical Forward Voltage: 46.9V
  • Viewing Angle: 115 degrees
  • Height: 5.80mm
  • Lens Type: Flat
  • Color Temperature: 5000K with a 3-step MacAdam Ellipse
  • Luminous Flux @ Typical Current/Temperature: 2290lm
  • Color Rendering Index (CRI): 80
  • ECCN: EAR99
  • For New Designs: No
