Same model may have multiple batches, images only for reference.

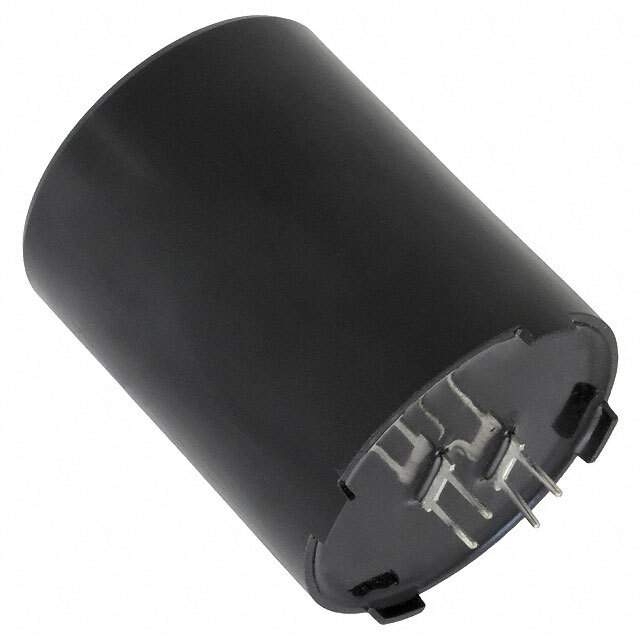

UNL5W100K-F Real Image
Same model may have multiple batches, images only for reference.

UNL5W100K-F

Part No UNL5W100K-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 100UF 10% 500VDC RADIAL / Cap Film 100uF 500V PP 10% (50 X 63mm) 0.006 Ohm 85°C
Datasheet
UNL5W100K-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series UNL
Packaging Bulk
Capacitance 100μF
Tolerance ±10%
Voltage Rating - DC 500V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 6 mOhm
Operating Temperature Range -55°C ~ 105°C
Mounting Style Through Hole
Package Radial
Dimension 1.969" Dia (50.00mm)
Height - Seated (Maximum) 2.500" (63.50mm)
Termination PC Pins
Lead Spacing 0.500" (12.70mm)
Applications DC Link, DC Filtering
Features Low ESR
Win Source Part Number 791123-UNL5W100K-F
Popularity Medium
Supply and Demand Status Limited
Family Name UNL
Introduction Date February 10, 2011
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian UNL5W100K-F CAD Model

Description

The UNL5W100K-F is a radial type aluminum electrolytic capacitor from Cornell Dubilier Electronics (CDE).

  • Capacitance: 100 µF
  • Voltage Rating: 500 V
  • Tolerance: ±10%
  • ESR: 6 mOhm
  • Height: 63.50mm
  • Diameter: 50.00mm
  • Series: UNL
  • Mounting Type: Through Hole
  • Lead Spacing: 12.70mm
  • Ripple Current: 3.26 A @ 120 Hz, 4.08 A @ 20 kHz
  • Lifetime: 2000 hours @ 85°C
  • ECCN: EAR99
  • Popularity: Popular
  • Supply/Demand: Medium
