Same model may have multiple batches, images only for reference.

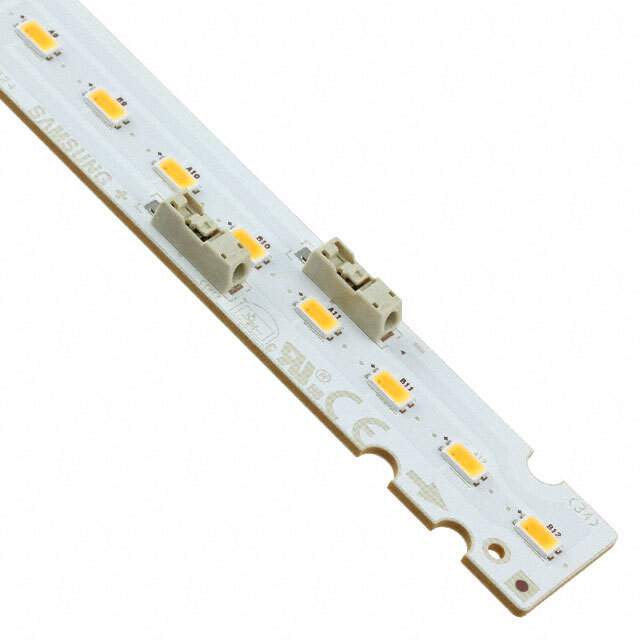

SI-B8R114280WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8R114280WW

Part No SI-B8R114280WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MOD LTM282CG2 COOL WHT STRIP / LED Lighting COBs Engines Modules LED Module series White, Cool Linear Light Strip
Datasheet
SI-B8R114280WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-M282C_G2
Package Tray
Product Status Obsolete
Type LED Module
Color White, Cool
CCT (K) 5000K 4-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1650lm (Typ)
Current - Test 450mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 24.8V
Lumens/Watt @ Current - Test 148 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 275.00mm L x 18.00mm W
Height 4.40mm
Lens Type Flat
Other Names 1510-1329
Standard Package 400
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240440-SI-B8R114280WW
Ultra Librarian 3D Model Ultra Librarian SI-B8R114280WW CAD Model

Description

The Samsung LT-M282C_G2 LED module is a white, cool optoelectronic component that is perfect for LED lighting applications.

  • Maximum Current Rating: 540mA
  • Viewing Angle: 115 degrees
  • Forward Voltage: 24.8V
  • CCT: 5000K 4-Step MacAdam Ellipse
  • Luminous Flux: 1650lm (Typ) @ 50°C
  • Package Size: 275.00mm L x 18.00mm W
  • Height: 4.40mm
  • Configuration: linear light strip
  • Packaging: tray
