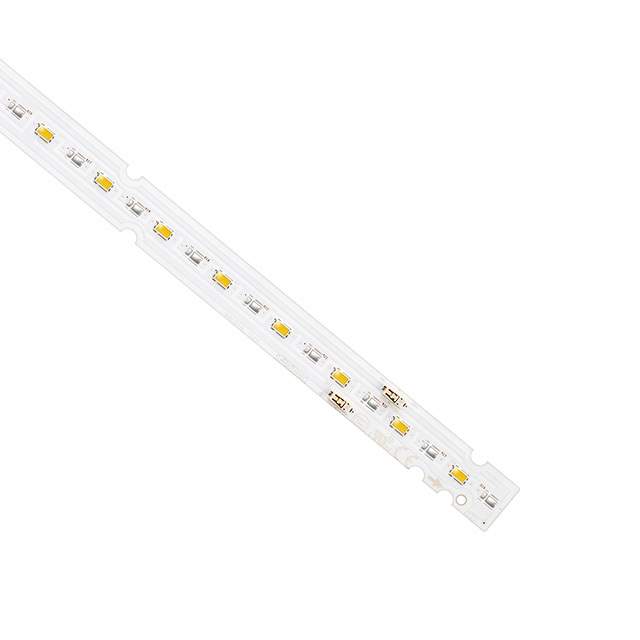

SI-B8R113560WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8R113560WW

Part No SI-B8R113560WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LED MODULE 5000K M562A_G2 / LED Lighting COBs Engines Modules LED Module series White, Cool Linear Light Strip
Datasheet
SI-B8R113560WW Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series LT-M562A_G2
Package Tray
Product Status Obsolete
Type LED Module
Color White, Cool
CCT (K) 5000K 4-Step MacAdam Ellipse
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1650lm (Typ)
Current - Test 450mA
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 24.8V
Lumens/Watt @ Current - Test 148 lm/W
Current - Max 540mA
CRI (Color Rendering Index) 80
Viewing Angle 115°
Features With Connector
Dimension 560.00mm L x 18.00mm W
Height 4.40mm
Lens Type Flat
Other Names 1510-1318
Standard Package 280
MSL Level Not Applicable
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240437-SI-B8R113560WW
Ultra Librarian 3D Model Ultra Librarian SI-B8R113560WW CAD Model

Description

The LT-M562A_G2 1240437-SI-B8R113560WW LED module is a high-quality module that is designed to provide efficient and reliable lighting.

  • Configuration: linear light strip
  • Viewing Angle: 115°
  • Color: white
  • CCT (K): 5000K 4-Step MacAdam Ellipse
  • Lumens/Watt @ current - test: 148 lm/W
  • CRI (Color Rendering Index): 80
  • Height: 4.40mm
  • Voltage - forward (Vf) (Typ): 24.8V
  • Current - max: 540mA
  • Current - test: 450mA
  • Packaging: tray
  • Dimension: 560.00mm L x 18.00mm W
