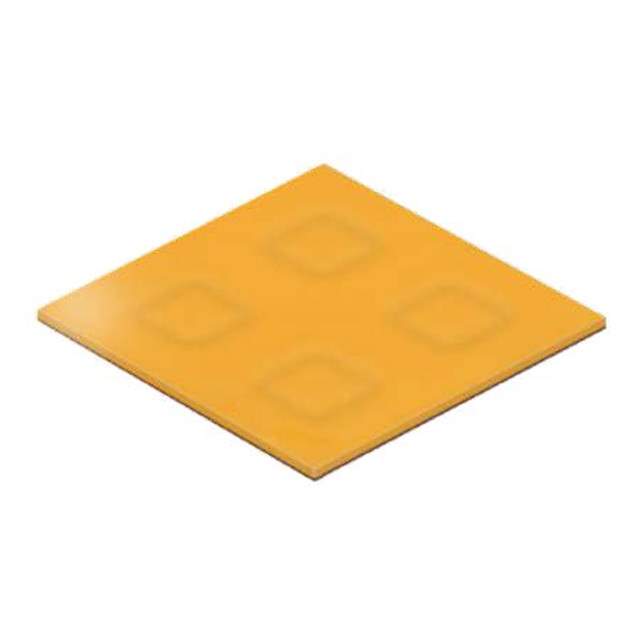

Same model may have multiple batches, images only for reference.

SCA8UT78HAL4U0AE1F

Get a Quote

Part No	SCA8UT78HAL4U0AE1F
Manufacturer	Samsung
Catalog	LED Lighting - White
Description	LED LH204A WARM WHITE 3500K SMD / LED Lighting series White, Warm 3500K 11.6V 150mA 120° 1414 (3535 Metric)
Datasheet	SCA8UT78HAL4U0AE1F Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Optoelectronics>LED Lighting - White
Mfr	Samsung Semiconductor, Inc.
Series	LH204A
Package	Tape & Reel
Product Status	Obsolete
Color	White, Warm
CCT (K)	3500K
Flux @ 85°C, Current - Test	223lm (200lm ~ 245lm)
Current - Test	150mA
Voltage - Forward (Vf) (Typ)	11.6V
Lumens/Watt @ Current - Test	128 lm/W
CRI (Color Rendering Index)	80
Current - Max	350mA
Viewing Angle	120°
Mounting	SMD (SMT)
Package / Case	1414 (3535 Metric)
Supplier Device Package	6-CSP
Dimension	0.138" L x 0.138" W (3.50mm x 3.50mm)
Height - Seated (Max)	0.016" (0.40mm)
Thermal Resistance of Package	2.5°C/W
Other Names	1510-1602,1510-1602-1,1510-1602,1510-1602-2,1510-1602-6
Standard Package	1,000
MSL Level	2A (4 Weeks)
ECCN	EAR99
HTSUS	8541.41.0000
Win Source Part Number	1240183-SCA8UT78HAL4U0AE1F
Ultra Librarian 3D Model	Ultra Librarian SCA8UT78HAL4U0AE1F CAD Model

Description

The Samsung Semiconductor SCA8UT78HAL4U0AE1F LED is a high-quality LED lighting product that is designed to provide warm white light.

Type: surface mount device (SMD)
Viewing Angle: 120 degrees
Maximum Current Rating: 350mA
Forward Voltage Rating: 11.6V
Package: 1414 (3535 Metric)
Thermal Resistance: 2.5 degrees Celsius per watt
Color Rendering Index (CRI): 80
Correlated Color Temperature (CCT): 3500K
Flux: 223lm @ 85 degrees Celsius @ a test current of 150mA
Lumens per Watt (lm/W): 128 @ test current
Series: LH204A series
