Same model may have multiple batches, images only for reference.

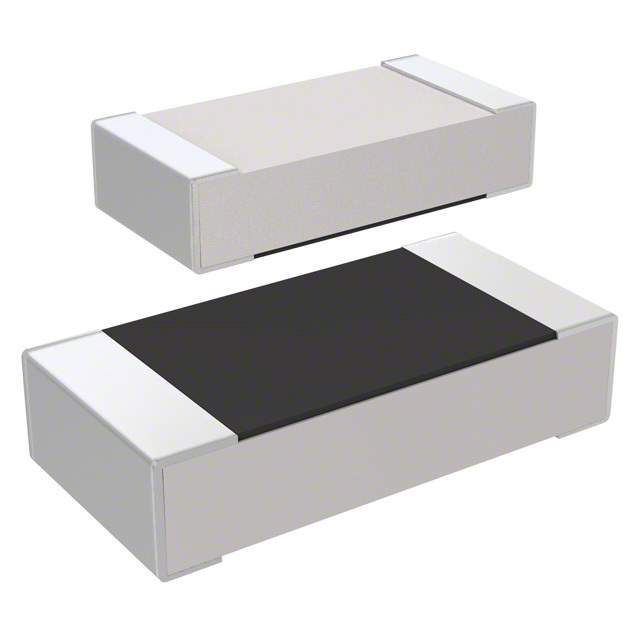

RC3216J100CS Real Image
Same model may have multiple batches, images only for reference.

RC3216J100CS

Part No RC3216J100CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES SMD 10 OHM 5% 1/4W 1206 / 10 Ohms ±5% 0.25W, 1/4W Chip Resistor 1206 (3216 Metric) Moisture Resistant Thick Film
Datasheet
RC3216J100CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel
Resistance 10 Ohms
Tolerance ±5%
Power (Watts) 0.25W, 1/4W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 1206 (3216 Metric)
Supplier Device Package 1206
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1339398-RC3216J100CS
Ultra Librarian 3D Model Ultra Librarian RC3216J100CS CAD Model

Description

The RC3216J100CS chip resistor from Samsung Electro-Mechanics is a surface mount resistor that is ideal for use in a variety of applications.

  • Resistance: 10 Ohms
  • Power (Watts): 0.25W (1/4W)
  • Tolerance: ±5%
  • Temperature Coefficient: ±100ppm/°C
  • Package / Case: 1206 (3216 Metric)
  • Height - Seated (Max): 0.026" (0.65mm)
  • Series: RC3216
  • RoHS Status: ROHS3 Compliant
  • REACH Status: Unaffected
  • HTSUS: 8533.21.0030
