Same model may have multiple batches, images only for reference.

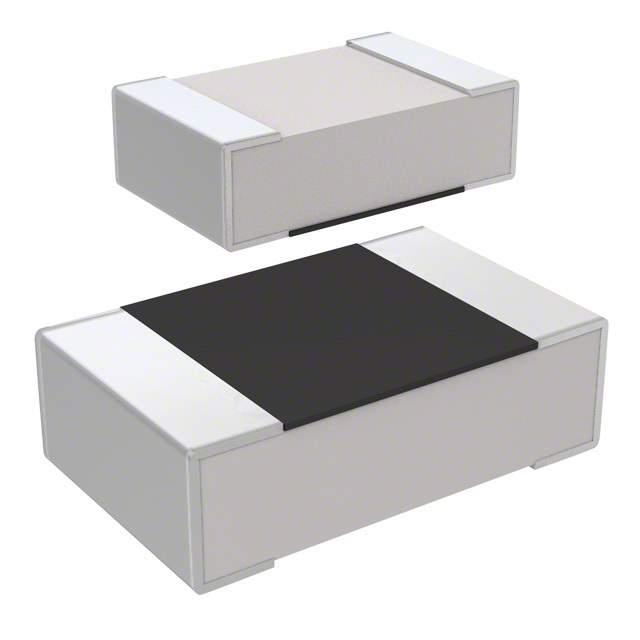

RC2012F3011CS Real Image
Same model may have multiple batches, images only for reference.

RC2012F3011CS

Part No RC2012F3011CS
Manufacturer Samsung
Catalog Chip Resistor - Surface Mount
Description RES SMD 3.01K OHM 1% 1/8W 0805 / 3.01 kOhms ±1% 0.125W, 1/8W Chip Resistor 0805 (2012 Metric) Moisture Resistant Thick Film
Datasheet
RC2012F3011CS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Samsung Electro-Mechanics
Series RC
Package Tape & Reel
Resistance 3.01 kOhms
Tolerance ±1%
Power (Watts) 0.125W, 1/8W
Composition Thick Film
Features Moisture Resistant
Temperature Coefficient ±100ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0805 (2012 Metric)
Supplier Device Package 0805
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.026" (0.65mm)
Number of Terminations 2
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Other Names 1276-5297-6,1276-5297-1,1276-5297-2
Standard Package 5,000
Win Source Part Number 1169774-RC2012F3011CS
Ultra Librarian 3D Model Ultra Librarian RC2012F3011CS CAD Model

Description

The RC series chip resistor is a surface mount type resistor, designed to be used in various applications.

  • Resistance: 3.01 kOhms
  • Tolerance: ±1%
  • Temperature Coefficient: ±100ppm/°C
  • Power Rating: 0.125W, 1/8W
  • Composition: thick film
  • Terminations: 2
  • Package: tape & reel
  • Temperature Range: -55°C to 155°C
  • Dimension: 0.079 inches L x 0.049 inches W (2.00mm x 1.25mm)
