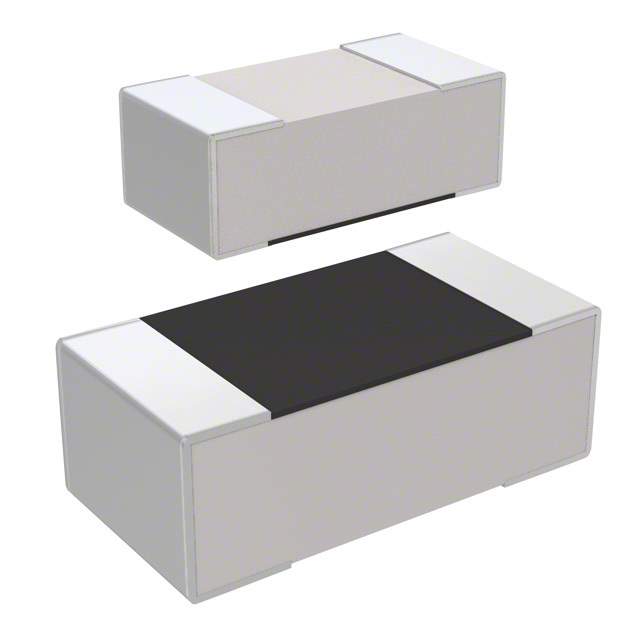

The Samsung RC1608J152CS is a thick film chip resistor designed for general-purpose applications. This resistor has a resistance value of 1.5 kΩ (1.5 kiloohms) with a tolerance of ±5%. The “1608” indicates the component size, which is 0603 in inches (1.6mm x 0.8mm).

Applications

• Consumer electronics
• Industrial equipment
• Power supplies
• Testing and measurement equipment
• Automotive electronics
• LED lighting

Features

• Thick film element
• Small size (0603)
• ±5% resistance tolerance
• High reliability
• Suitable for reflow soldering
• RoHS compliant

Benefits

• Stable resistance over temperature
• Cost-effective solution for general purpose applications
• Easy to mount on printed circuit boards due to its SMD design
• Reduces board space due to its small size
• Suitable for high-density mounting
• Consistent performance in various operating conditions

Additional Details

The resistor is constructed using a thick film resistive element on an alumina substrate, which provides excellent thermal stability and mechanical strength. The termination is typically made of nickel barrier with solder plating, which ensures good solderability and prevents solder leaching during reflow soldering. The resistor is designed to operate within a specific temperature range, typically from -55°C to +155°C. The power rating of the resistor is typically 1/10W (0.1W), but this should be verified in the product datasheet. The voltage rating also needs to be considered depending on the application, which can be found in the datasheet.

The RC1608J152CS resistor is commonly used in a variety of electronic circuits to provide a specific resistance value for current limiting, voltage division, or other purposes. Its small size and high reliability make it a popular choice for modern electronic designs. It conforms to industry standards and offers a reliable and cost-effective solution for resistance requirements in various applications. It's important to consult the manufacturer's datasheet for detailed specifications and performance characteristics for the specific application requirements.
