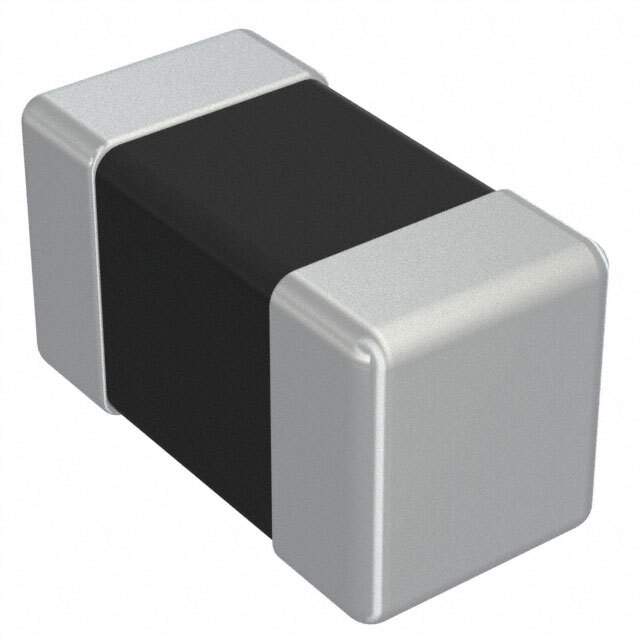

CIM05U601NC Real Image
Same model may have multiple batches, images only for reference.

CIM05U601NC

Part No CIM05U601NC
Manufacturer Samsung
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 600 OHM 0402 1LN / 600 Ohms @ 100 MHz 1 Ferrite Bead 0402 (1005 Metric) 300mA 600mOhm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters>Ferrite Beads and Chips
Manufacturer Samsung Electro-Mechanics
Packaging Reel - TR
Product Status Obsolete
Number of Lines 1
Impedance @ Frequency 600 Ohms @ 100 MHz
Current Rating (Max) 300mA
DC Resistance (DCR) (Max) 600mOhm
Temperature Range - Operating -55°C ~ 125°C
Case / Package 0402 (1005 Metric)
Mounting Surface Mount
Height (Max) 0.022" (0.55mm)
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Other Part Number 1276-6337-6,1276-6337-1,1276-6337-2
Standard Package 10,000
Win Source Part Number 1328078-CIM05U601NC
Ultra Librarian 3D Model Ultra Librarian CIM05U601NC CAD Model

Description

The Samsung Electro-Mechanics ferrite bead with the part number 1328078-CIM05U601NC is a surface-mount type filter that comes in a 0402 (1005 metric) case/package.

  • Mounting Type: Surface-Mount
  • Case/Package: 0402 (1005 metric)
  • Size/Dimension: 0.039" L x 0.020" W (1.00mm x 0.50mm)
  • Current Rating (Max): 300mA
  • Impedance: 600 Ohms @ 100 MHz
  • DC Resistance (DCR): 600mOhm Max
  • Height: 0.022" (0.55mm)
  • Reel Quantity: 10,000 pieces
  • Temperature Range: -55°C ~ 125°C
  • Product Status: Obsolete
