Same model may have multiple batches, images only for reference.

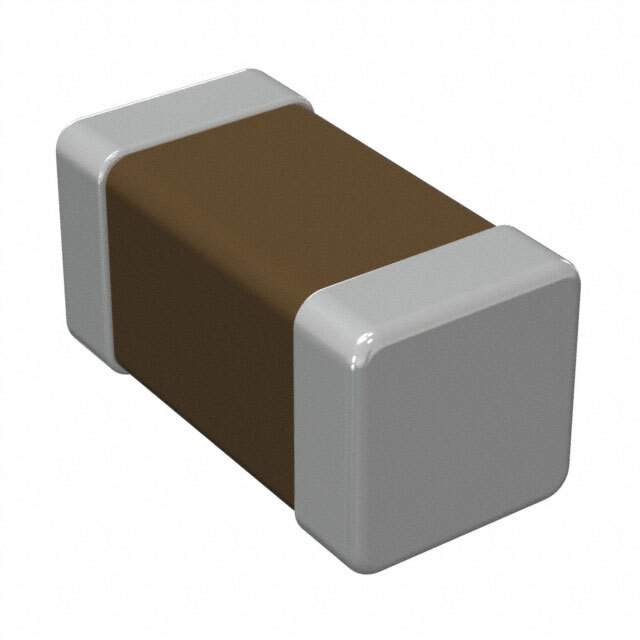

CIL10NR10KNC Real Image
Same model may have multiple batches, images only for reference.

CIL10NR10KNC

Part No CIL10NR10KNC
Manufacturer Samsung
Catalog Fixed Inductors
Description FIXED IND 100NH 50MA 500MOHM SMD / 100 nH Shielded Inductor 50 mA 500mOhm Max 0603 (1608 Metric)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Samsung Electro-Mechanics
Series CIL10
Package Tape & Reel (TR)
Product Status Obsolete
Material - Core Ferrite
Inductance 100 nH
Tolerance ±10%
Current Rating (Amps) 50 mA
Shielding Shielded
DC Resistance (DCR) 500mOhm Max
Q @ Freq 15 @ 25MHz
Frequency - Self Resonant 240MHz
Temperature Range - Operating -40°C ~ 85°C
Inductance Frequency - Test 25 MHz
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Supplier Device Package 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.037" (0.95mm)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Standard Package 4,000
Win Source Part Number 1115319-CIL10NR10KNC
Ultra Librarian 3D Model Ultra Librarian CIL10NR10KNC CAD Model

Description

The CIL10NR10KNC is a fixed inductor that is a part of the CIL10 series.

  • Series: CIL10
  • Manufacturer: Samsung Electro-Mechanics
  • Category: Inductors, Coils, Chokes
  • Tolerance: ±10%
  • Inductance: 100 nH
  • Shielded: Yes
  • Core Material: Ferrite
  • Q @ Freq: 15 @ 25MHz
  • Frequency - Self-Resonant: 240MHz
  • Package/Case: 0603 (1608 Metric)
  • DC Resistance (DCR): 500mOhm Max
  • Temperature Range: -40°C ~ 85°C
  • ECCN: EAR99
  • Current Rating (Amps): 50 mA
  • Inductance Frequency - Test: 25 MHz
