The 2SB1151-Y is a PNP silicon epitaxial transistor manufactured by Samsung. This transistor is designed for use in low-frequency power amplifier applications. It features high current capability and low saturation voltage, making it suitable for driving various loads. The 'Y' designation often indicates a specific gain or voltage rating within the 2SB1151 series.

Applications

• Low-frequency power amplifiers
• Switching circuits
• Driver stages
• Audio amplifiers
• DC-DC converters

Features

• PNP Silicon Epitaxial Transistor
• High Collector Current (Ic) Capability
• Low Saturation Voltage (VCE(sat))
• High Power Dissipation
• Complementary to NPN Transistors
• Through-Hole Mounting Package

Benefits

• Efficient Power Amplification
• Low Power Loss in Switching Applications
• Stable Performance in Various Operating Conditions
• Easy to Integrate into Existing Circuits
• Cost-Effective Solution

Additional Details

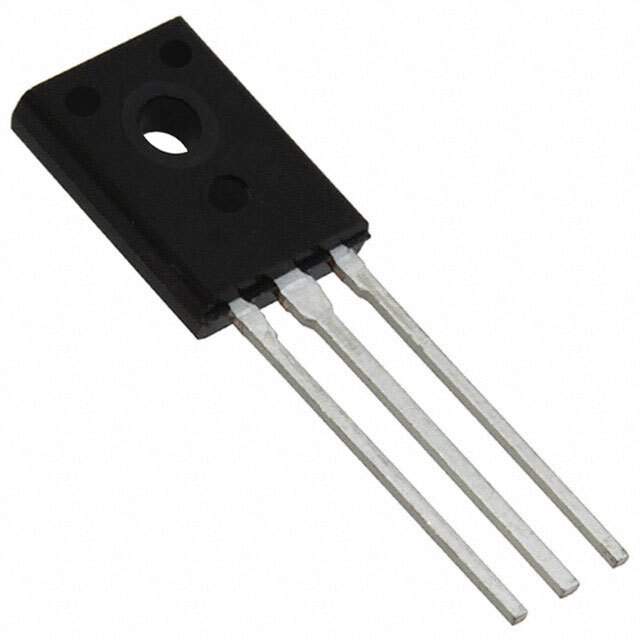

The 2SB1151-Y is typically supplied in a TO-126 or similar through-hole package. Its high collector current rating allows it to drive relatively large loads without significant performance degradation. The low saturation voltage minimizes power dissipation, improving overall efficiency. Complementary NPN transistors can be used in conjunction with the 2SB1151-Y to create push-pull amplifier configurations. The transistor's characteristics, such as current gain (hFE), vary with collector current and temperature. Designers must consider these variations when designing circuits to ensure optimal performance. The 2SB1151-Y is a reliable and versatile component for various electronic applications where amplification or switching of signals is required.
