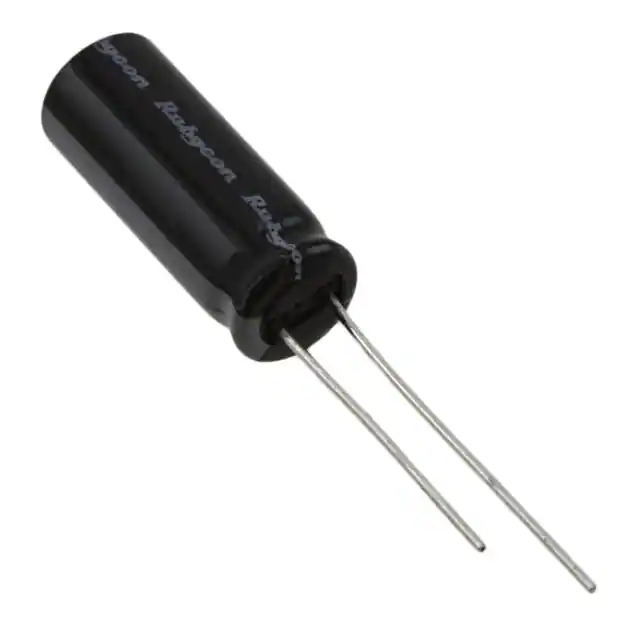

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLJ
Package Bulk
Product Status Active
Capacitance 82 µF
Tolerance ±20%
Voltage - Rated 80 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 9000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 520 mA @ 120 Hz
Impedance 160 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357872-80ZLJ82M8X20
Ultra Librarian 3D Model Ultra Librarian 80ZLJ82M8X20 CAD Model

Description

The Rubycon ZLJ series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications from Rubycon.

  • Capacitance: 82 µF
  • Voltage Rating: 80 V
  • Tolerance: ±20%
  • Ripple Current: 520 mA @ 120 Hz
  • Mounting Type: Through Hole
  • Lead Spacing: 0.138" (3.50mm)
  • Height: 0.866" (22.00mm)
  • Diameter: 0.315" (8.00mm)
  • Lifetime: 9000 hours @ 105°C
  • Product Status: Active
  • REACH: Unaffected
  • Polarization: Polarized
  • Impedance: 160 mOhms
