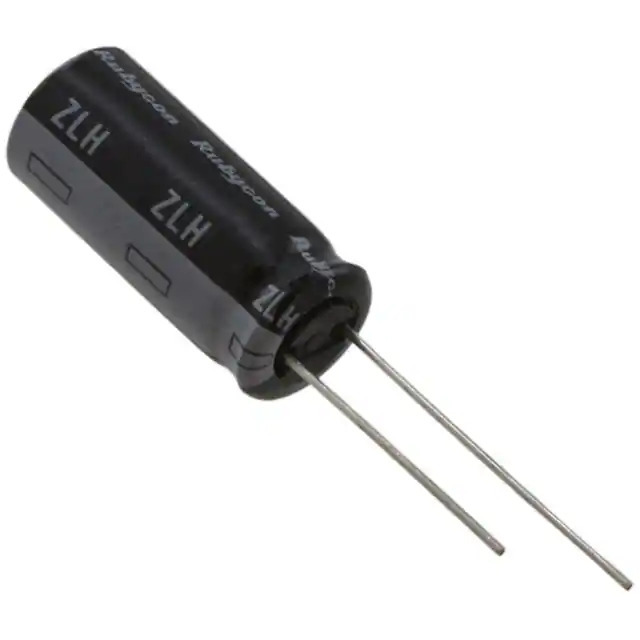

Same model may have multiple batches, images only for reference.

80ZLH220MEFC10X23

Name: 80ZLH220MEFC10X23
Brand: Rubycon
SKU: 1357837
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	80ZLH220MEFC10X23
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 80V RADIAL / 220 µF 80 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	ZLH
Package	Bulk
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	80 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	585 mA @ 120 Hz
Impedance	110 mOhms
Lead Spacing	0.197" (5.00mm)
Size / Dimension	0.394" Dia (10.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1357837-80ZLH220MEFC10X23
Ultra Librarian 3D Model	Ultra Librarian 80ZLH220MEFC10X23 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

Capacitance: 220 µF
Voltage Rating: 80 V
Tolerance: ±20%
Ripple Current: 585 mA @ 120 Hz
Size (Dia): 0.394 inches (10.00 mm)
Height: 0.984 inches (25.00 mm)
Mounting Type: Through-Hole
Lifetime: 10,000 hours @ 105°C
Manufacturer: Rubycon
Packaging: Bulk
