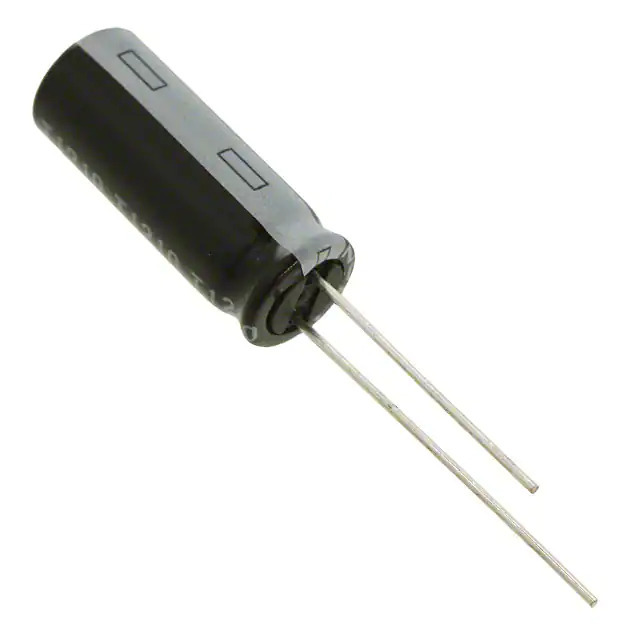

Same model may have multiple batches, images only for reference.
63ZLH100MEFCT78X16 Rubycon
Same model may have multiple batches, images only for reference.

63ZLH100MEFCT78X16

Part No 63ZLH100MEFCT78X16
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 100UF 20% 63V RADIAL / 100 µF 63 V Aluminum Electrolytic Capacitors Radial, Can 8000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series ZLH
Package Tape & Box (TB)
Product Status Active
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 63 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 8000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 344 mA @ 120 Hz
Impedance 160 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358201-63ZLH100MEFCT78X16
Ultra Librarian 3D Model Ultra Librarian 63ZLH100MEFCT78X16 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Capacitance: 100 µF
  • Voltage - Rated: 63 V
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 344 mA @ 120 Hz
  • Lead Spacing: 0.138" (3.50mm)
  • Size / Dimension: 0.315" (8.00mm)
  • Height - Seated (Max): 0.689" (17.50mm)
  • Lifetime @ Temp.: 8000 Hrs @ 105°C
  • Applications: General Purpose
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Series: ZLH
