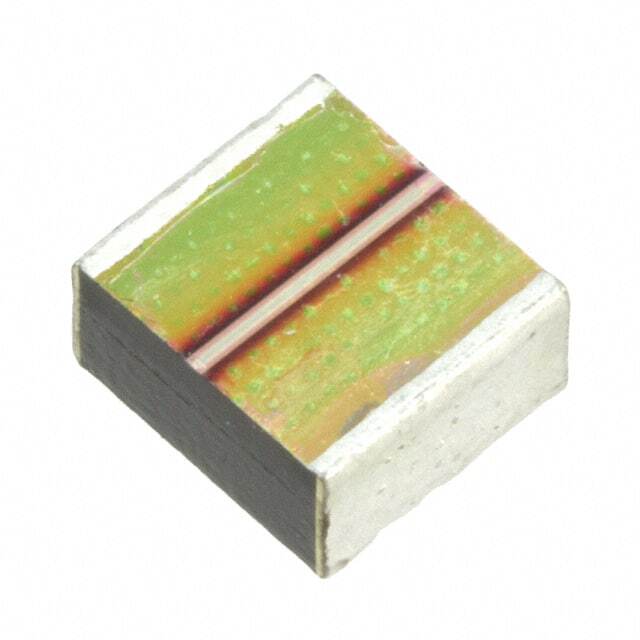

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Film Capacitors
Mfr Rubycon
Series PMLCAP®, ST
Package Tape & Reel
Product Status Obsolete
Capacitance 3.3 µF
Tolerance ±20%
Voltage Rating - DC 63V
Dielectric Material Acrylic, Metallized
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2220 (5750 Metric)
Size / Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) 0.102" (2.60mm)
Termination Solder Pads
Applications DC Link, DC Filtering
Standard Package 200 pcs
MSL Level 5 (48 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0045
Win Source Part Number 856889-63ST335MD35750
Ultra Librarian 3D Model Ultra Librarian 63ST335MD35750 CAD Model

Description

The PMLCAP® ST series film capacitor is a high-quality component designed for DC link and DC filtering applications.

  • Capacitance: 3.3 µF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Termination Style: Solder Pads
  • Mounting Type: Surface Mountable
  • Size: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Temperature Range: -55°C to 125°C
  • Product Status: Obsolete
  • Manufacturer: Rubycon
