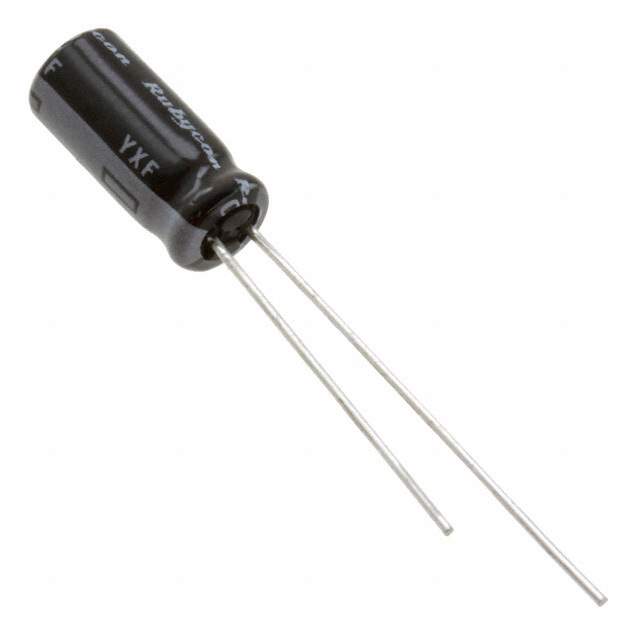

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Cut Tape (CT),Tape & Box (TB)
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 82.5 mA @ 120 Hz
Ripple Current @ High Frequency 150 mA @ 100 kHz
Impedance 900 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.492" (12.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-4217-1,1189-4217-3,50YXF22MEFCTA5X11-ND
Standard Package 2,000
Win Source Part Number 1330244-50YXF22MEFCTA5X11
Ultra Librarian 3D Model Ultra Librarian 50YXF22MEFCTA5X11 CAD Model

Description

The Rubycon 1330244-50YXF22MEFCTA5X11 is an aluminum electrolytic capacitor that has a capacitance of 22 µF and a voltage rating of 50 V.

  • Capacitance: 22 µF
  • Voltage Rating: 50 V
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Height - Seated (Max): 0.492" (12.50mm)
  • Tolerance: ±20%
  • Impedance: 900 mOhms
  • ESR (Equivalent Series Resistance): Not Specified
  • Polarization: Polar
  • Package / Case: Radial, Can
  • Temperature Range: -40°C ~ 105°C
  • Lifetime @ Temp.: 5000 Hrs @ 105°C
  • Application: General Purpose
