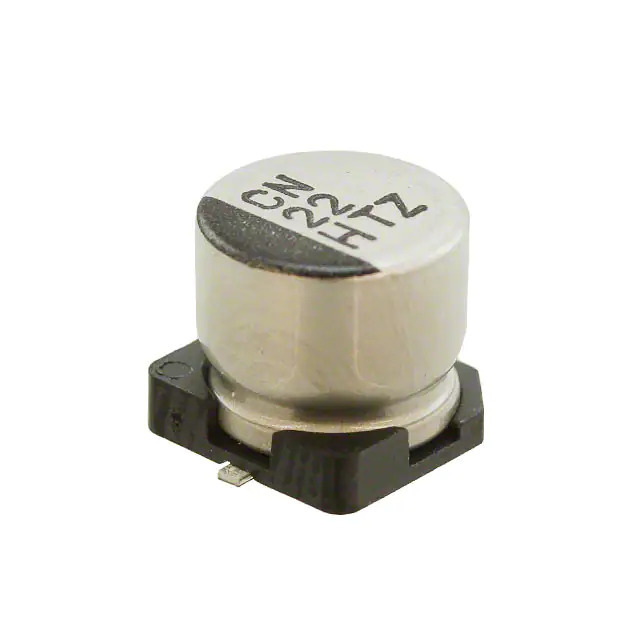

50TZV22M6.3X6.1 Rubycon
Same model may have multiple batches, images only for reference.

50TZV22M6.3X6.1

Part No 50TZV22M6.3X6.1
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 50V SMD / 22 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TZV
Package Tape & Reel
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 52.8 mA @ 120 Hz
Ripple Current @ High Frequency 165 mA @ 100 kHz
Impedance 880 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.240" (6.10mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360360-50TZV22M6.3X6.1
Ultra Librarian 3D Model Ultra Librarian 50TZV22M6.3X6.1 CAD Model

Description

The TZV series aluminum electrolytic capacitor is specifically designed for automotive applications by Rubycon.

  • Capacitance: 22µF
  • Rated Voltage: 50V
  • Tolerance: ±20%
  • Temperature Range: -55°C to 105°C
  • Package Style: Radial, Can
  • Mounting Type: Surface Mount
  • Size: 0.248" diameter and 0.240" height
  • Lifetime: 2000 hours @ 105°C
  • Ripple Current (Low Frequency): 52.8mA @ 120Hz
  • Ripple Current (High Frequency): 165mA @ 100kHz
