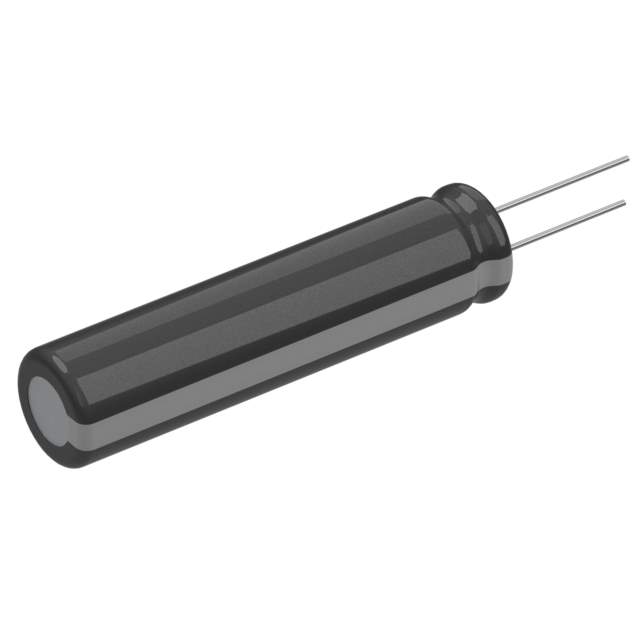

450LXW56MEFR10X45 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series LXW
Package Bulk
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 520 mA @ 120 Hz
Ripple Current @ High Frequency 1.144 A @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 500
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1352285-450LXW56MEFR10X45
Ultra Librarian 3D Model Ultra Librarian 450LXW56MEFR10X45 CAD Model

Description

The Rubycon LXW series capacitor is a radial, can type capacitor with a capacitance of 56 µF and a voltage rating of 450 V.

  • Capacitance: 56 µF
  • Voltage - Rated: 450 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): Not Applicable
  • Ripple Current @ Low Frequency: 520 mA @ 120 Hz
  • Ripple Current @ High Frequency: 1.144 A @ 100 kHz
  • Polarization: Polar
  • Mounting Type: Through Hole
  • Lead Spacing: 0.197" (5.00mm)
  • Height - Seated (Max): 1.850" (47.00mm)
  • Diameter: 0.394" (10.00mm)
  • Applications: General Purpose
  • Lifetime @ Temp.: 12000 Hours @ 105℃
  • Series: LXW
