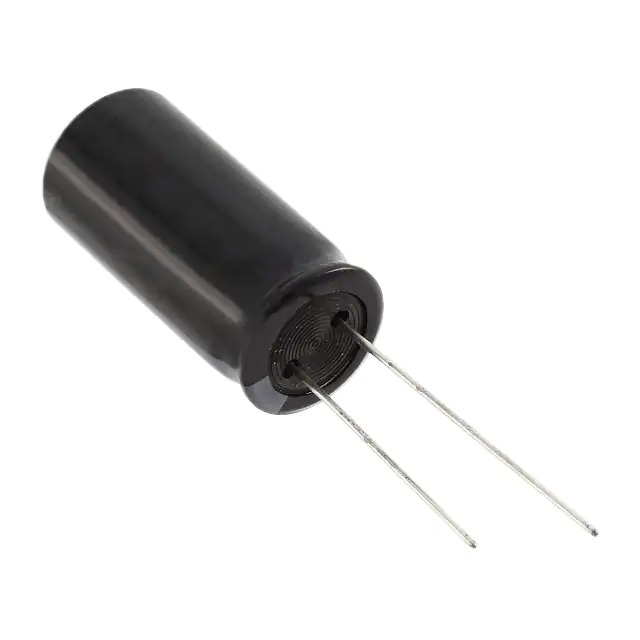

Same model may have multiple batches, images only for reference.
450BXW22MEFR12.5X20 Rubycon
Same model may have multiple batches, images only for reference.

450BXW22MEFR12.5X20

Part No 450BXW22MEFR12.5X20
Manufacturer Rubycon
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 450V RADIAL / 22 µF 450 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Product Status Active
Capacitance 22 µF
Tolerance ±20%
Voltage - Rated 450 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 280 mA @ 120 Hz
Ripple Current @ High Frequency 700 mA @ 100 kHz
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.492" Dia (12.50mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357762-450BXW22MEFR12.5X20
Ultra Librarian 3D Model Ultra Librarian 450BXW22MEFR12.5X20 CAD Model

Description

The 1357762-450BXW22MEFR12.5X20 is a bulk packaged aluminum electrolytic capacitor manufactured by Rubycon.

  • Series: BXW
  • Application: General Purpose
  • Capacitance: 22 μF
  • Tolerance: ±20%
  • Voltage Rating: 450 V
  • Ripple Current (Low Frequency): 280 mA @ 120 Hz
  • Ripple Current (High Frequency): 700 mA @ 100 kHz
  • ESR: Not Specified
  • Lifetime: 10,000 hours @ 105°C
  • Package: Radial, Can
  • Diameter: 12.50 mm
  • Height: 22.00 mm
  • Lead Spacing: 5.00 mm
  • Mounting Type: Through-Hole
  • REACH: Unaffected
  • Polarization: Polarized
