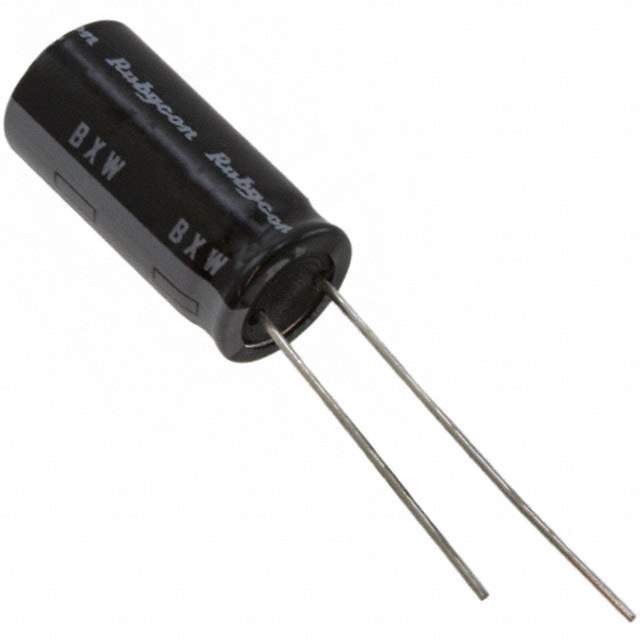

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXW
Package Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 450 V
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 750 mA @ 120 Hz
Ripple Current @ High Frequency 1.688 A @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.260" (32.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names 1189-3221
Standard Package 200
Win Source Part Number 1150333-450BXW100MEFR18X30
Ultra Librarian 3D Model Ultra Librarian 450BXW100MEFR18X30 CAD Model

Description

The 450BXW100MEFR18X30 is an aluminum electrolytic capacitor that belongs to the BXW series manufactured by Rubycon.

  • Capacitance: 100 µF
  • Voltage Rating: 450 V
  • Mounting Type: Through-Hole
  • Lead Spacing: 0.295" (7.50mm)
  • Height: 1.260" (32.00mm)
  • Tolerance: ±20%
  • ESR: Not Specified
  • Polarization: Polar
  • Package/Case: Radial, Can
  • Temperature Range: -40°C ~ 105°C
  • Lifetime: 12000 Hrs @ 105°C
