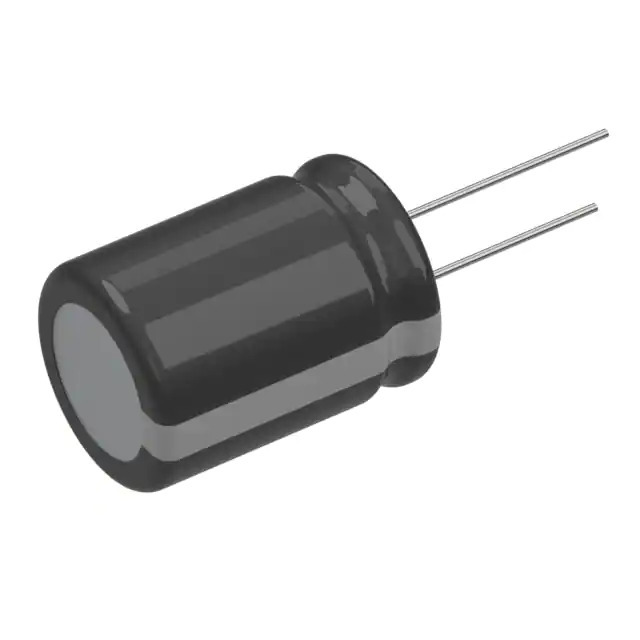

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series TXW
Package Bulk
Product Status Active
Capacitance 68 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 510 mA @ 120 Hz
Ripple Current @ High Frequency 765 mA @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 1.083" (27.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357754-400TXW68MEFR16X25
Ultra Librarian 3D Model Ultra Librarian 400TXW68MEFR16X25 CAD Model

Description

The 1357754-400TXW68MEFR16X25 is a bulk packaged aluminum electrolytic capacitor manufactured by Rubycon.

  • Series: TXW
  • Application: General Purpose
  • Capacitance: 68 μF
  • Tolerance: ±20%
  • Voltage - Rated: 400 V
  • Ripple Current @ Low Frequency: 510 mA @ 120 Hz
  • Ripple Current @ High Frequency: 765 mA @ 100 kHz
  • ESR (Equivalent Series Resistance): Not Specified
  • Lifetime @ Temp.: 12000 Hrs @ 105°C
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Size / Dimension: 16.00 mm Dia
  • Height - Seated (Max): 27.50 mm
  • Lead Spacing: 7.50 mm
  • REACH: Unaffected
  • Polarization: Polar
