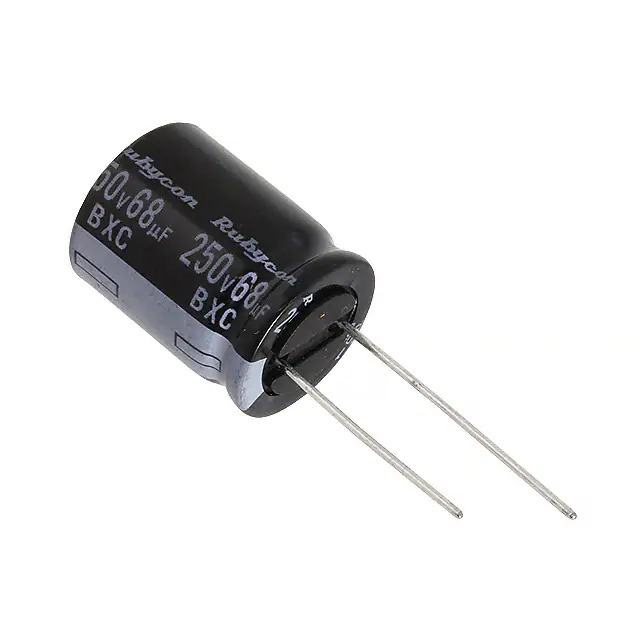

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series BXC
Package Bulk
Product Status Active
Capacitance 33 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 12000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 360 mA @ 120 Hz
Ripple Current @ High Frequency 900 mA @ 100 kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.630" Dia (16.00mm)
Height - Seated (Max) 0.866" (22.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1357650-400BXC33MEFC16X20
Ultra Librarian 3D Model Ultra Librarian 400BXC33MEFC16X20 CAD Model

Description

The 400BXC33MEFC16X20 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Series: BXC
  • Capacitance: 33μF
  • Voltage - Rated: 400V
  • Applications: General Purpose
  • Operating Temperature: -25°C ~ 105°C
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 360mA @ 120Hz
  • Ripple Current @ High Frequency: 900mA @ 100kHz
  • Mounting Type: Through Hole
  • Package / Case: Radial, Can
  • Size / Dimension: 16.00mm Diameter
  • Height - Seated (Max): 22.00mm
  • Lifetime @ Temp.: 12000 Hrs @ 105°C
