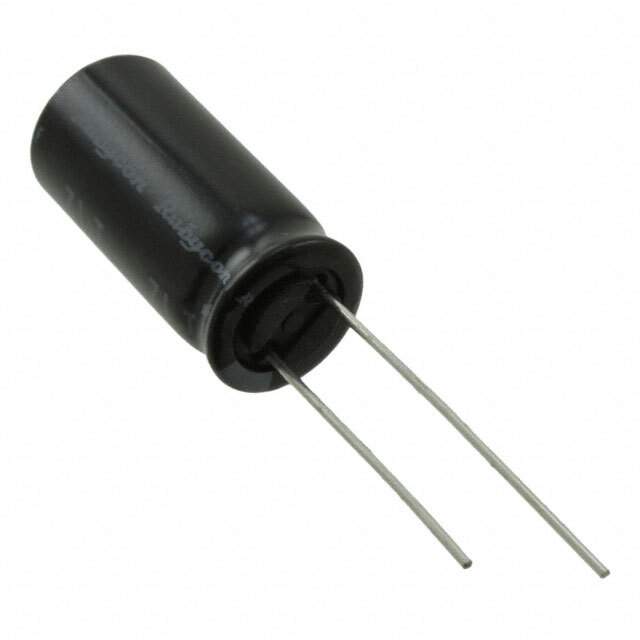

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Bulk
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.1 A @ 120 Hz
Ripple Current @ High Frequency 2 A @ 100 kHz
Impedance 38 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 1,000
Win Source Part Number 1330517-35ZLJ390M10X16
Ultra Librarian 3D Model Ultra Librarian 35ZLJ390M10X16 CAD Model

Description

The Rubycon 35ZLJ390M10X16 is an aluminum electrolytic capacitor manufactured by Rubycon.

  • Capacitance: 390 µF
  • Tolerance: ±20%
  • Voltage Rating: 35 V
  • Impedance: 38 mOhms
  • Ripple Current: 1.1 A @ 120 Hz and 2 A @ 100 kHz
  • Package: Radial, can package
  • Size/Dimension: 0.394" Dia (10.00mm)
  • Lead Spacing: 0.197" (5.00mm)
  • Polarization: Polarized
  • Height: 0.689" (17.50mm)
  • Operating Temperature: -40°C ~ 105°C
  • Lifetime: 10000 Hrs @ 105°C
  • Compliance: ROHS3 compliant and REACH unaffected
  • ECCN: EAR99
