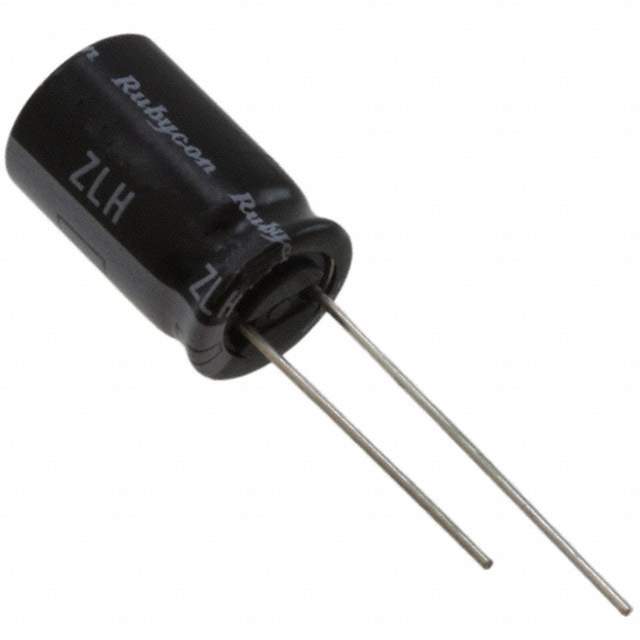

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Manufacturer Rubycon
Packaging Cut Tape (CT),Tape & Box (TB)
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 968 mA @ 120 Hz
Ripple Current @ High Frequency 1.76 A @ 100 kHz
Impedance 28 mOhms
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Mounting Through Hole
Case / Package Radial, Can
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Part Number 1189-4003-1,1189-4003-ND,35ZLH470MEFCT810X16-ND,1189-4003,1189-4003-3
Standard Package 500
Win Source Part Number 1329406-35ZLH470MEFCT810X16
Ultra Librarian 3D Model Ultra Librarian 35ZLH470MEFCT810X16 CAD Model

Description

The Rubycon 35ZLH470MEFCT810X16 is an aluminum electrolytic capacitor with a capacitance of 470 microfarads and a voltage rating of 35V.

  • Manufacturer: Rubycon
  • Capacitance: 470 microfarads
  • Voltage Rating: 35V
  • Tolerance: +/-20%
  • Impedance: 28 milliohms
  • Ripple Current: 968mA @ 120Hz and 1.76A @ 100kHz
  • Lifetime: 10000 hours @ 105 degrees Celsius
  • Polarization: Polar
