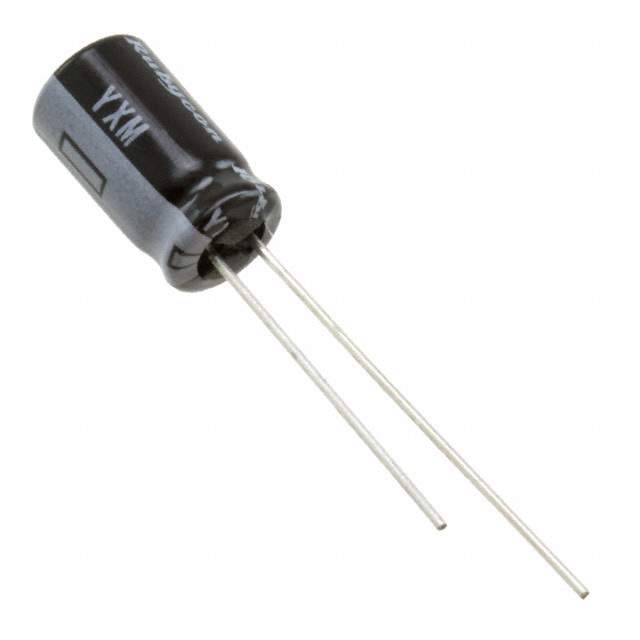

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXM
Package Bulk
Product Status Obsolete
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 35 V
Lifetime @ Temp. 10000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 231 mA @ 120 Hz
Ripple Current @ High Frequency 330 mA @ 100 kHz
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 2,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1338156-35YXM100MEFC8X11.5
Ultra Librarian 3D Model Ultra Librarian 35YXM100MEFC8X11.5 CAD Model

Description

The 1338156-35YXM100MEFC8X11.5 is a general-purpose aluminum electrolytic capacitor from Rubycon with a capacitance of 100 μF and a voltage rating of 35 V.

  • Capacitance: 100 μF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Height: 0.512" (13.00mm)
  • Polarized: Yes
  • Package/Case: Radial, can
  • Diameter: 0.315" (8.00mm)
  • Lead Spacing: 0.138" (3.50mm)
  • ESR: Not specified
  • Lifetime: 10,000 hours @ a temperature of 105°C
  • Ripple Current @ Low Frequency: 231 mA @ 120 Hz
  • Ripple Current @ High Frequency: 330 mA @ 100 kHz
  • Package: Bulk
  • Standard Package: 2,000 capacitors
