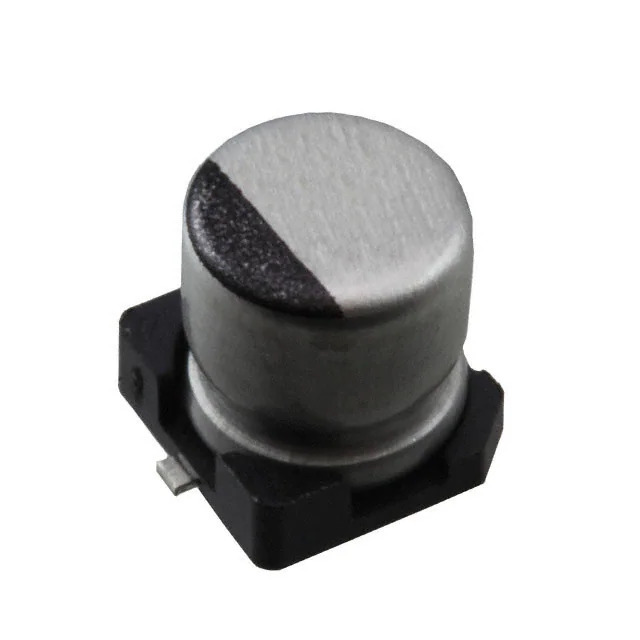

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series SZV
Package Tape & Reel
Product Status Active
Capacitance 10 µF
Tolerance ±20%
Voltage - Rated 35 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 52.25 mA @ 120 Hz
Ripple Current @ High Frequency 95 mA @ 100 kHz
Impedance 2 Ohms
Lead Spacing -
Size / Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.217" (5.50mm)
Surface Mount Land Size 0.209" L x 0.209" W (5.30mm x 5.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360290-35SZV10M5X5.5
Ultra Librarian 3D Model Ultra Librarian 35SZV10M5X5.5 CAD Model

Description

The Rubycon SZV series aluminum electrolytic capacitor is a reliable component designed for general-purpose applications. With a capacitance of 10 µF and a voltage rating of 35 V, this capacitor is suitable for a wide range of electronic devices.

  • Series: SZV
  • Capacitance: 10 µF
  • Voltage Rating: 35 V
  • Tolerance: ±20%
  • Ripple Current (Low Frequency): 52.25 mA @ 120 Hz
  • Ripple Current (High Frequency): 95 mA @ 100 kHz
  • Package: Radial, Can - SMD
  • Size: 0.197" (5.00mm) diameter
  • Height: 0.217" (5.50mm)
  • Mounting Type: Surface Mount
  • Surface Mount Land Size: 0.209" L x 0.209" W (5.30mm x 5.30mm)
  • Lifetime: 1000 hours @ 105°C
  • Application: General Purpose
