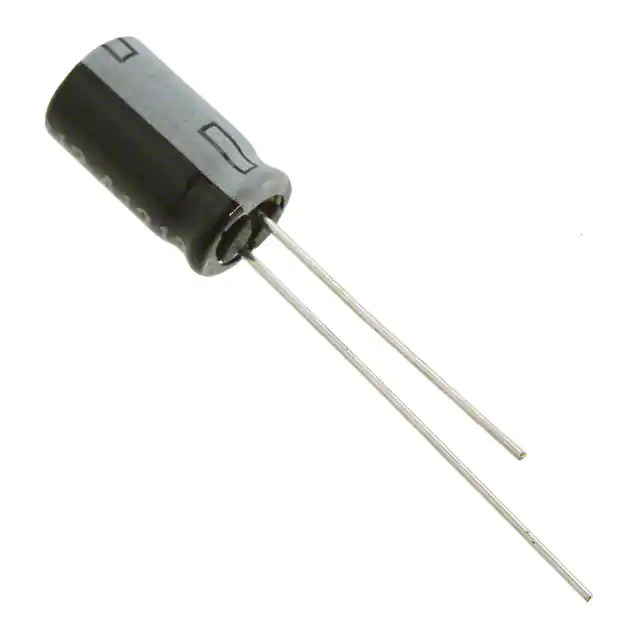

Same model may have multiple batches, images only for reference.

25ZLH150MEFC6.3X11

Name: 25ZLH150MEFC6.3X11
Brand: Rubycon
SKU: 1358047
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	25ZLH150MEFC6.3X11
Manufacturer	Rubycon
Catalog	Aluminum Capacitors
Description	CAP ALUM 150UF 20% 25V RADIAL / 150 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Rubycon
Series	ZLH
Package	Bulk
Product Status	Active
Capacitance	150 µF
Tolerance	±20%
Voltage - Rated	25 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	6000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	270 mA @ 120 Hz
Ripple Current @ High Frequency	540 mA @ 100 kHz
Impedance	94 mOhms
Lead Spacing	0.098" (2.50mm)
Size / Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.492" (12.50mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1358047-25ZLH150MEFC6.3X11
Ultra Librarian 3D Model	Ultra Librarian 25ZLH150MEFC6.3X11 CAD Model

Description

The Rubycon ZLH series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

Capacitance: 150 μF
Voltage Rating: 25 V
Tolerance: ±20%
Ripple Current (Low Freq): 270 mA
Ripple Current (High Freq): 540 mA
Mounting Type: Through Hole
Lead Spacing: 2.50mm
Size: 6.30mm (Diameter)
Height: 12.50mm
Lifetime: 6000 hours @ 105°C
Status: Active
