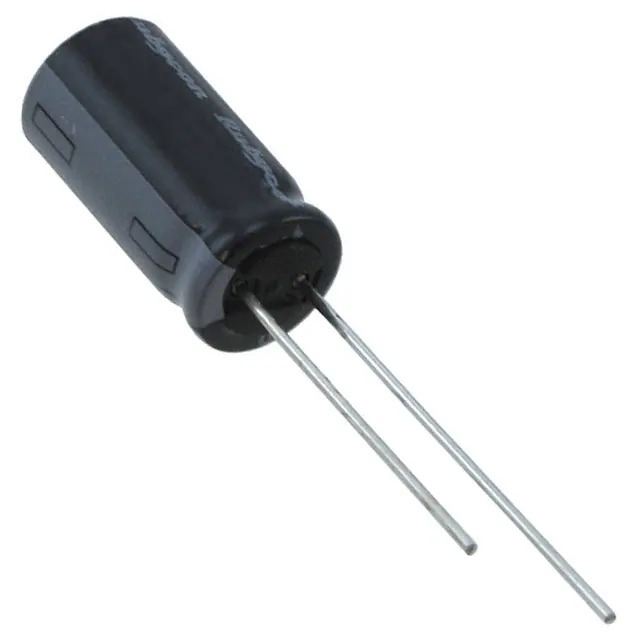

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Rubycon
Series YXG
Package Bulk
Product Status Active
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 25 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 4000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 462 mA @ 120 Hz
Impedance 87 mOhms
Lead Spacing 0.138" (3.50mm)
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.689" (17.50mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1358021-25YXG330MEFC8X16
Ultra Librarian 3D Model Ultra Librarian 25YXG330MEFC8X16 CAD Model

Description

The Rubycon 1358021-25YXG330MEFC8X16 is a high-quality aluminum electrolytic capacitor.

  • Capacitance: 330 µF
  • Voltage Rating: 25 V
  • Application: General-Purpose
  • Operating Temperature: -40°C to 105°C
  • Package: Radial Can
  • Diameter: 8.00mm
  • Height: 17.50mm
  • Lifetime: 4000 hours @ 105°C
  • Ripple Current: 462 mA @ 120 Hz
